McKinney

McKinney SP3386 4.5" x 4.5" StormPro Tornado Resistant Hinge

$119.91
Usually Ships:  10-15 Business Days
  • Built to withstand extreme wind speeds and flying debris
  • Meets UL Certification for Fire and FEMA Guidelines
  • .180 Heavyweight, five knuckle

Available Options:

Clear

Product Overview

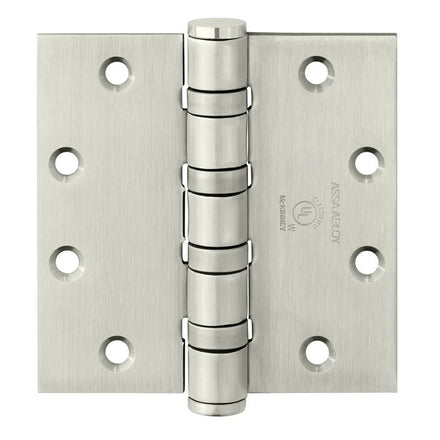

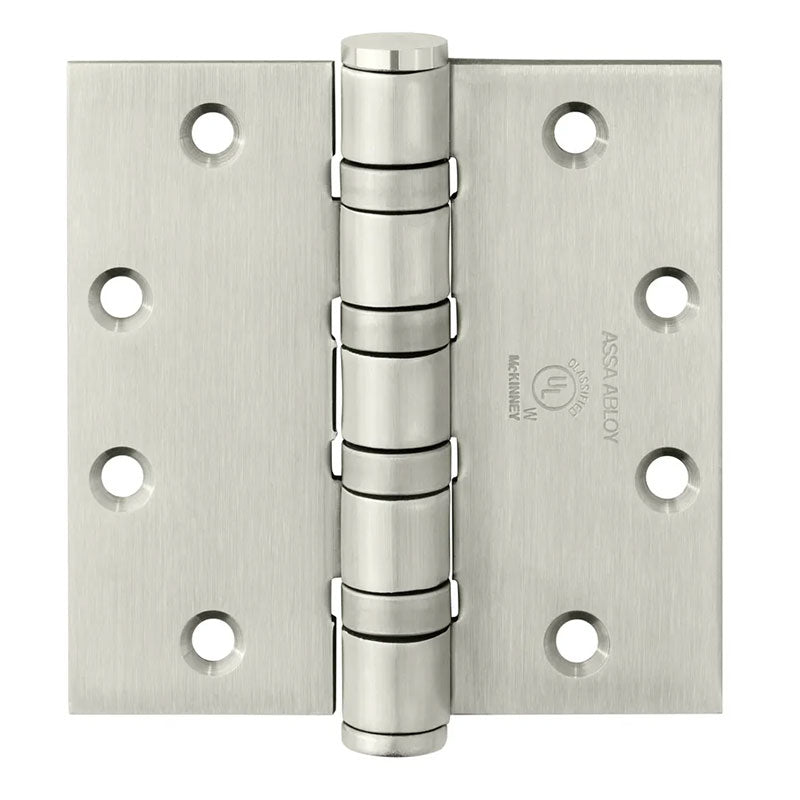

McKinney SP3386 StormPro® Tornado Resistant Hinge, 4-1/2" x 4-1/2", 32D/630 Satin Stainless Steel Finish

The SP3386 (stainless steel) StormPro® tornado resistant hinges are built to withstand the extreme wind speeds and flying debris associated with severe weather conditions.

Features

  • Built to withstand the extreme wind speeds and flying debris associated with severe weather conditions
  • Meets UL Certification for Fire, ICC 500-2014 and FEMA Guidelines
  • For common flush door/frame/wall application
  • Packed with stainless steel machine screws
  • NRP available

Benefits

  • Tornado resistant
  • Part of the integrated unit when used with StormPro® tornado resistant assemblies from Ceco Door, CURRIES, and other hardware by ASSA ABLOY Group brands including Rockwood kickplates, automatic door holders and stops and door viewers
  • StormPro® products help fortify the opening to combat intense wind speeds up to 250 miles per hour
  • Optional Non-Removable Pin (NRP) ensures hinge is held in place and can't be removed when door is closed

Certifications

  • UL listed and UL10c compliant
  • FEMA P-361
  • ICC 500
  • NFPA 80 Compliant
Brand

Finishes

630 Satin Stainless Steel

Hinge Type

Full Mortise

Size

5" x 4.5"

Knuckles

Five

Bearings

Ball Bearing

Usage

Heavy Duty

Base Material

Stainless Steel

Gauge

0 .180

ANSI/BHMA Standard

Meets ANSI/BHMA A156 .1

Fire-Rating

Approved for NFPA 80 fire rated openings
