Product Overview

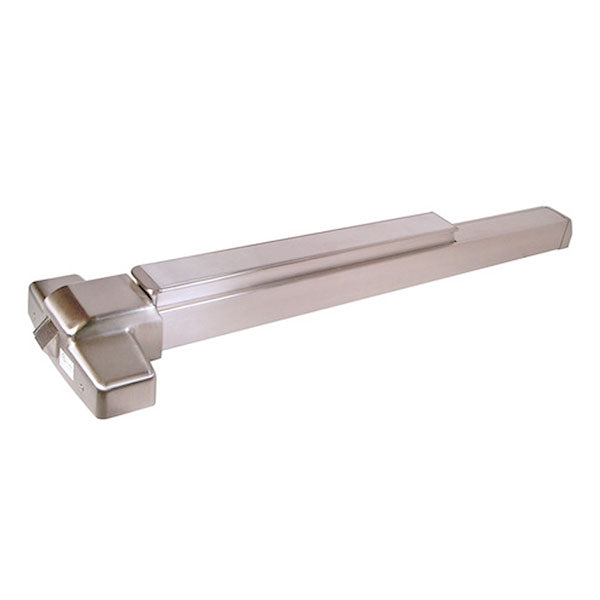

Marks USA X-it Series M9900ER Grade-1 Panic Rim Exit Device, Electric Latch Retraction, 24VDC, Exit Only
M9900 Exit Devices from Marks USA offer a simple, heavy-duty, easily installed solution where high-quality panic hardware is needed. These extremely durable, Grade 1 exit devices are perfect for high impact applications such as schools, universities & other institutional or commercial buildings, and retrofit all popular preps. The heavy-duty cast chassis provides superior durability, while the smooth reduced projection touchbar assembly minimizes catch hazards. To help alleviate the problem of end caps breaking off due to abuse from carts, they have a mitered steel flush-mounted Panic Protector End Cap.
- Exit Only Device (Marks Exit Device Trim Sold Separately)
- Electric Latch Retraction with simultaneous dogging
- Momentary or maintained latch bolt and push pad retraction
- Voltage: 24VDC @ 450 mA activation, 180 mA continuous
- Automatic re-triggering of latch retraction
- Reliably control all types of single & double doors (non-handed)
- Ultra-Durable, heavy gauge extrusion
- Marks Lifetime Mechanical Warranty
- Steel flush mounted Panic Protector End Cap & popular Smooth Case
- Easy Installation & Retrofits All Popular Preps
- ANSI 156.3 (2001), Grade 1
| Brand | |
|---|---|
| Finishes |
US32D (630) Satin Stainless Steel |
| Length |
33" (for 36" Door), 42" (for 48" Door) |
| Voltage |
24VDC |
| ANSI/BHMA Standard |
ANSI 156.3 (2001), Grade 1 |
| Usage |
Heavy Duty |
| Fire-Rating |
None |
| Latchbolt |
Stainless Steel 3/4” throw with 5/8" Stainless Steel Dead Latch |
| Strike |
Roller Strike |
| Dogging Feature |
None |
| Stile Type |
Wide (Standard) |
| Door Thickness |
1-3/4" |
