LCN

LCN 4116-EDA Door Closer, Parallel Arm Push Side Mount with EDA (Extra Duty Arm)

$424.08
This item ships FREE! Usually Ships:  1-2 Business Days
  • Extra Heavy-Duty, ANSI Grade 1 certified, Made in USA
  • Cast iron body, spring size 6
  • Parallel arm (PUSH SIDE) mount

Available Options:

Clear

Product Overview

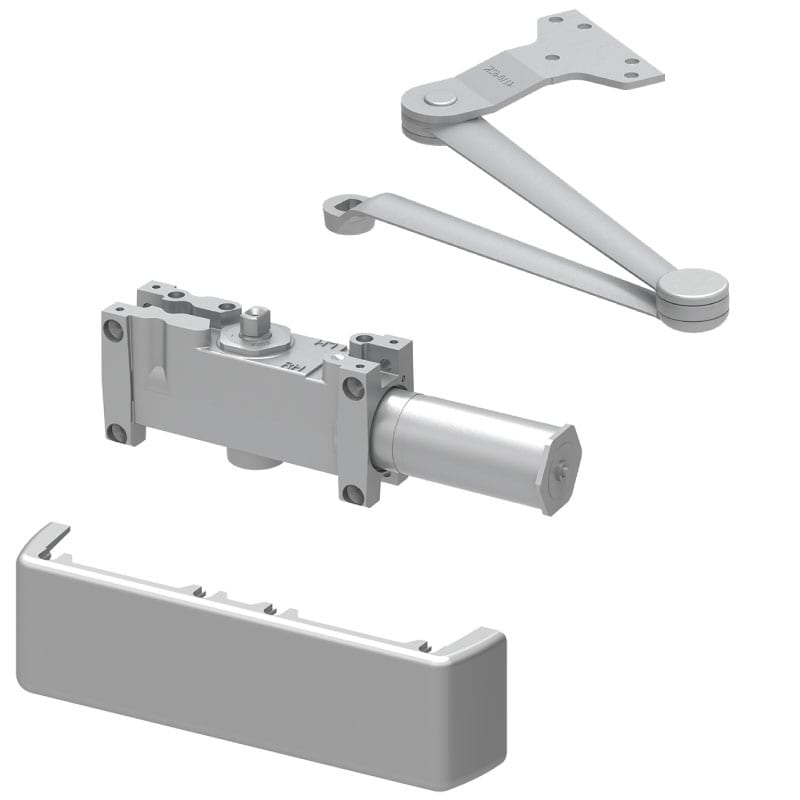

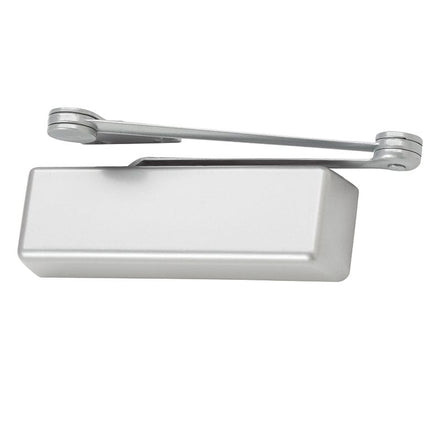

LCN 4116-EDA Grade 1 Surface Door Closer, Extra Duty Arm, Push Side Parallel Arm Mounting, Size 6

The 4110 Series are heavy-duty closers that meet demands for high-traffic installations and each are designed specifically for unique mounting applications. They are UL and cUL listed, meet ANSI/BHMA Grade 1 standards and boast 30-year warranties. They feature the LCN Green Dial spring force indicator, which takes the guesswork out of adjustment.

  • Extra Duty (EDA) parallel arm closer designed specifically for institutional and other rugged high traffic applications
  • Spring Size 6
  • For interior doors to 4'6" wide and exterior doors to 3'6" wide

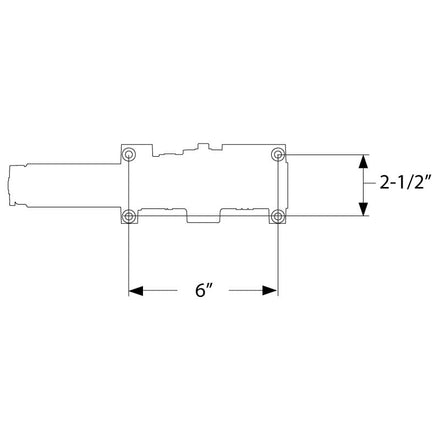

  • Peel-n-Stick templates - 2-1/2" x 6" Mounting Hole Pattern

Brand

Finishes

689 Aluminum (Powder Coated)

Templating (Hole Pattern)

2-1/2" x 6"

Mounting Options

Parallel Arm (Push Side)

Usage

Heavy Duty

Body Construction

Cast Iron Body

Spring Size

Spring Size 6

Fluid

All Weather Liquid X Fluid

Door Application

Hollow Metal or Wood

Handing

Handed - LH, RH

Certifications

Tested and certified under ANSI Standard A156.4 - Grade-1

Fire-Rating

UL and cUL Listed - up to 3 Hours (Non-Rated with Hold Open Arms)

ADA Compliance

Meets ADA requirements - A117.1 Accessibility Code

Cover

Full Cover

Fasteners

Standard Universal Screw Pack includes Self Reaming and Tapping Screws (SRT), Machine Screws, Wood Screws and Thru Bolts

Warranty

30 Years

Buy American Act Compliance

Meets Buy American Act - Made in USA
