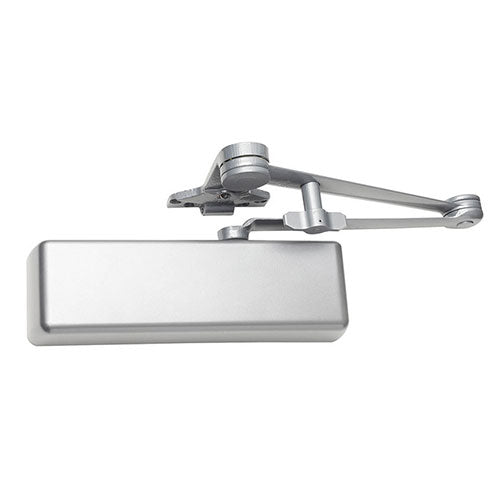

LCN 4111-HCUSH Door Closer, Parallel Arm Push Side Mount with CUSH-N-STOP Hold Open Arm

$506.73
This item ships FREE! Usually Ships:  1-2 Business Days
  • Heavy-Duty, ANSI Grade 1 certified, Made in USA
  • Hold-open function with templated stop/hold-open points
  • Parallel arm mount only, handle controls hold-open function

Available Options:

Clear

Product Overview

LCN 4111-HCUSH Grade 1 Surface Door Closer, CUSH-N-STOP Hold Open Arm, Push Side Parallel Arm Mounting

The 4110 Series are heavy-duty closers that meet demands for high-traffic installations and each are designed specifically for unique mounting applications. They feature the LCN Green Dial spring force indicator, which takes the guesswork out of adjustment.

  • Includes Cush-N-Stop® Hold Open Arm
  • Features solid forged steel main arm and forearm with stop in soffit shoe
  • Adjustable Spring Size 1-5, includes Patented Green Dial
  • For interior doors to 4'6" wide and exterior doors to 3'6" wide
  • Peel-n-Stick templates - 2-1/2" x 6" Mounting Hole Pattern
Brand

Finishes

689 Aluminum (Powder Coated), 691 Light Bronze (Powder Coated), 696 Brass (Powder Coated), 695 Dark Bronze (Powder Coated), 693 Black (Powder Coated)

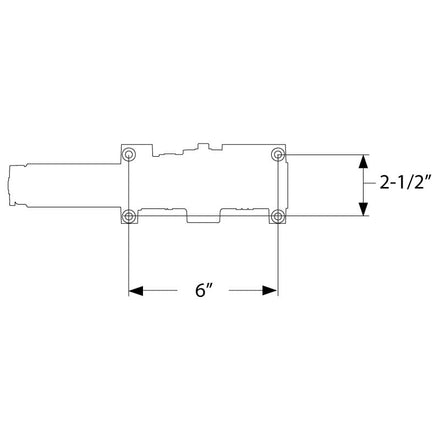

Templating (Hole Pattern)

2-1/2" x 6"

Mounting Options

Parallel Arm (Push Side)

Usage

Heavy Duty

Body Construction

Cast Iron Body

Spring Size

Adjustable Spring Size 1-5

Fluid

All Weather Liquid X Fluid

Door Application

Hollow Metal or Wood

Handing

Handed - LH, RH

Certifications

Tested and certified under ANSI Standard A156.4 - Grade-1

Fire-Rating

Non-Rated with Hold Open Arm

ADA Compliance

Meets ADA requirements - A117.1 Accessibility Code

Cover

Full Cover

Fasteners

Standard Universal Screw Pack includes Self Reaming and Tapping Screws (SRT), Machine Screws, Wood Screws and Thru Bolts

Warranty

30 Years

Buy American Act Compliance

Meets Buy American Act - Made in USA
