LCN

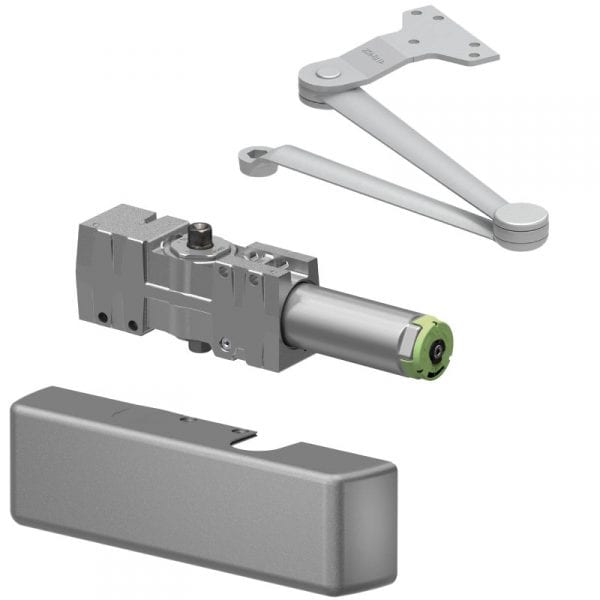

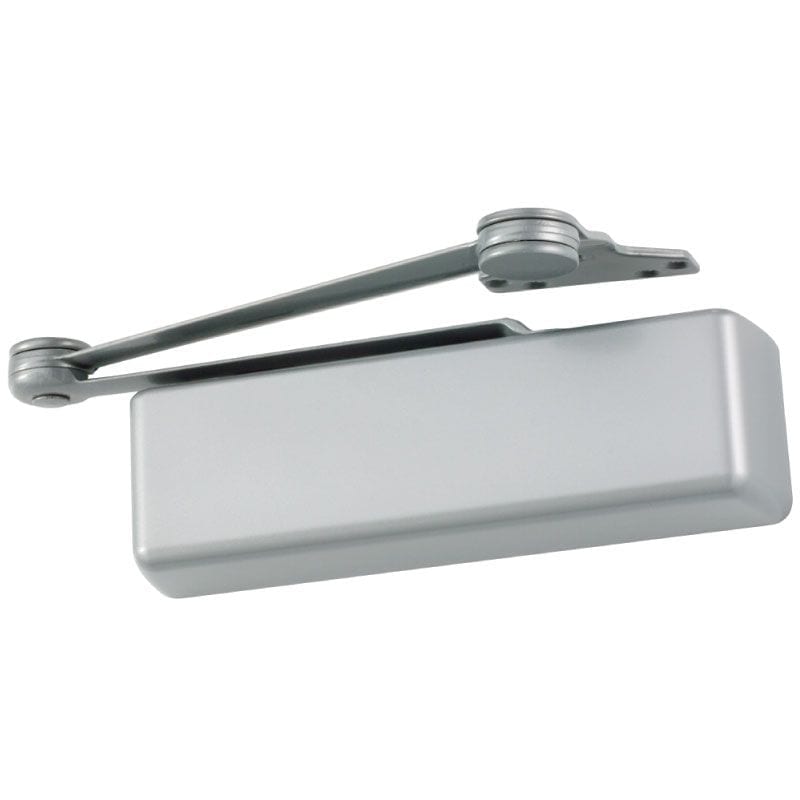

LCN 4041 DEL EDA Delayed Action Door Closer with Extra Heavy Duty Parallel Arm

$506.73
This item ships FREE! Usually Ships:  1-2 Business Days
  • Extra Heavy-Duty, ANSI Grade 1 certified, Made in USA
  • Features forged, solid steel arm for potentially abusive installations
  • Allows slow-moving traffic to clear before the normal closing cycle begins

Available Options:

Clear

Product Overview

LCN 4041DEL-EDA Grade 1 Surface Door Closer, Extra Duty Arm, Push Side Mounting, 180 Degree Swing, Adjustable Size 1-6, Plastic Cover, Delayed Action, Non-Handed

Delayed Action closing allows slow-moving traffic to clear the opening before the door closer’s normal closing cycle begins. This feature can be helpful in health care facilities such as hospitals and nursing homes.

  • Incorporates standard 4041-3071 DEL cylinderƒ
  • Delays closing from 120° to 70°ƒ
  • Delay time adjustable up to approximately 1 minute
  • Designed for commercial, industrial and institutional applications
  • Adjustable Spring Size 1-6, includes Patented Green Dial
  • For interior doors to 5'0" wide and exterior doors to 4'0" wide

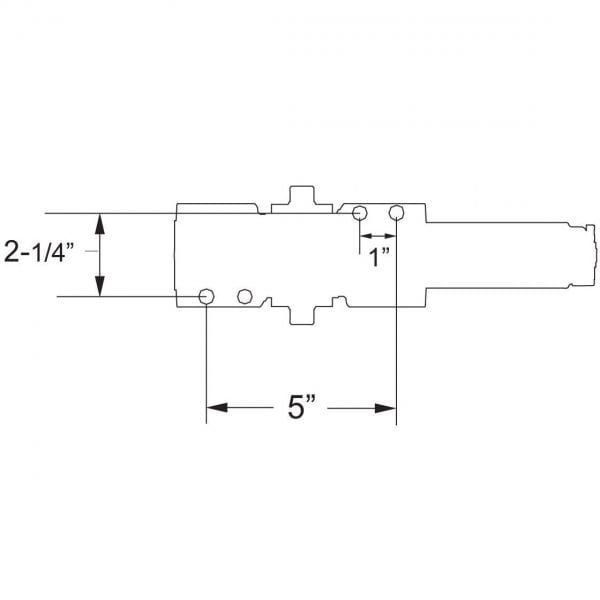

  • Peel-n-Stick templates - 2-1/4" x 5" Mounting Hole Pattern

Brand

Finishes

691 Light Bronze (Powder Coated), 696 Brass (Powder Coated), 695 Dark Bronze (Powder Coated), 693 Black (Powder Coated), 689 Aluminum (Powder Coated)

Templating (Hole Pattern)

2-1/4" x 5"

Usage

Heavy Duty

Mounting Options

Parallel Arm (Push Side)

Body Construction

Cast Iron Body

Spring Size

Adjustable Spring Size 1-6

Fluid

All Weather Liquid X Fluid

Door Application

Hollow Metal or Wood

Handing

Non-Handed

Certifications

Tested and certified under ANSI Standard A156.4 - Grade-1

Fire-Rating

UL and cUL Listed - up to 3 Hours (Non-Rated with Hold Open Arms)

Cover

Full Cover

Fasteners

Standard Universal Screw Pack includes Self Reaming and Tapping Screws (SRT), Machine Screws, Wood Screws and Thru Bolts

Buy American Act Compliance

Meets Buy American Act - Made in USA
