LCN

LCN 4040XP Rw/PA SRI Door Closer with Special Rust Inhibitor

$469.68
This item ships FREE! Usually Ships:  1-2 Business Days
  • Heavy-Duty, ANSI Grade 1 certified, Made in USA
  • Includes special rust inhibitor primer for corrosive conditions
  • Tri-Packed - regular, top jamb  or parallel arm mount

Available Options:

Clear

Product Overview

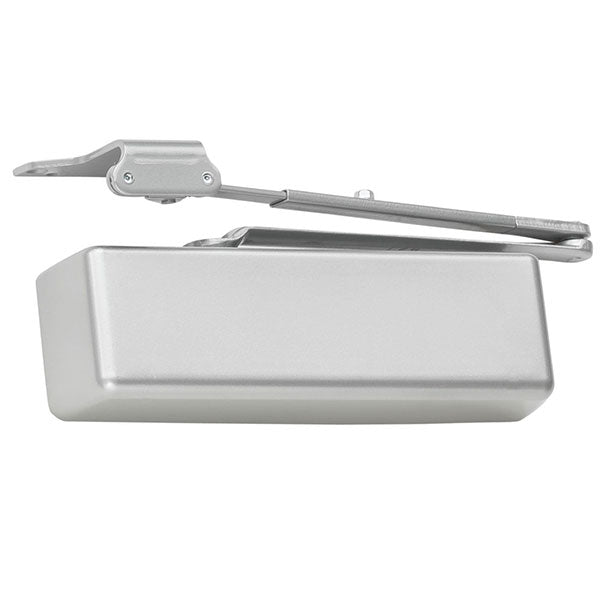

LCN 4040XP RWPA Grade-1 Door Closer, Regular Arm with Parallel Bracket, Special Rust Inhibitor, Full Cover

The 4040XP is LCN’s most durable and flexible heavy-duty closer designed for institutional, industrial, commercial, and other demanding high-traffic applications. High-traffic doors call for heavy-duty closers – closers that won’t let you down no matter how many people go through the door or how hard they kick, push or slam against it.

For installations where a higher level of protection against weather conditions, or the effects of a potentially corrosive atmosphere is required, LCN offers a special rust-inhibiting (SRI) process. Ferrous metal components receive an SRI pretreatment and a standard powder coat finish. Closers treated with the SRI process exceed the 100-hour protection level available with standard LCN powder-coated finishes.

  • SRI = Special Rust Inhibitor primer for installations in corrosive conditions
  • Designed for commercial, industrial, and institutional applications
  • Adjustable Spring Size 1-6, includes Patented Green Dial
  • For interior doors to 5'0" wide and exterior doors to 4'0" wide
  • Standard Tri-Pack includes arms for Regular Pull Side, Top Jamb or Parallel Arm Mounting
  • Peel-n-Stick templates - 2-1/4" x 5" Mounting Hole Pattern

Brand

Finishes

689 Aluminum (Powder Coated), 691 Light Bronze (Powder Coated), 696 Brass (Powder Coated), 695 Dark Bronze (Powder Coated), 693 Black (Powder Coated)

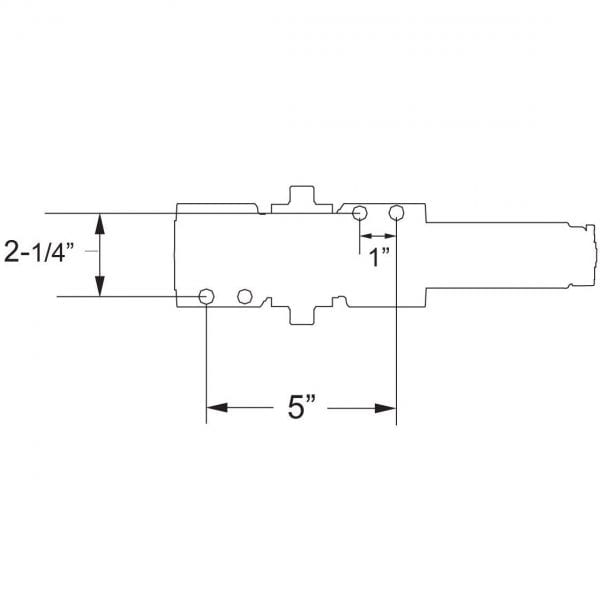

Templating (Hole Pattern)

2-1/4" x 5"

Usage

Heavy Duty

Body Construction

Cast Iron Body

Mounting Options

Parallel Arm (Push Side), Regular (Pull Side), Top Jamb (Push Side)

Spring Size

Adjustable Spring Size 1-6

Fluid

All Weather Liquid X Fluid

Door Application

Hollow Metal or Wood

Handing

Non-Handed

Certifications

Tested and certified under ANSI Standard A156.4 - Grade-1

Fire-Rating

UL and cUL Listed - up to 3 Hours (Non-Rated with Hold Open Arms)

ADA Compliance

Meets ADA requirements - A117.1 Accessibility Code

Cover

Full Cover

Fasteners

Standard Universal Screw Pack includes Self Reaming and Tapping Screws (SRT), Machine Screws, Wood Screws and Thru Bolts

Environmental Conditions

Approved for exterior use (SRI coated only). Offers a higher level of protection against weather conditions or the effects of a potentially corrosive atmosphere.

Warranty

30 Years

Buy American Act Compliance

Meets Buy American Act - Made in USA
