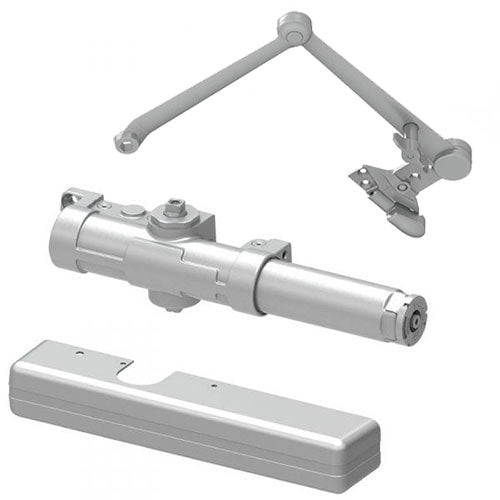

LCN 1461 SHCUSH Door Closer with Spring CUSH-N-STOP Heavy Duty Hold Open Parallel Arm

$444.07
This item ships FREE! Usually Ships:  1-2 Business Days
  • Includes Non-handed 1460-3049SCNS Spring SHCUSH arm
  • Hold-open function with stop/hold-open points, spring-loaded stop
  • Parallel arm mount only, handle controls hold-open function

Available Options:

Clear

Product Overview

LCN 1461 SHCUSH Grade-1 Door Closer, Spring CUSH-N-STOP Hold Open Arm

The 1460 Series is a universal medium-duty closer designed for maximum versatility in commercial and institutional applications, meeting ANSI/BHMA A156.4 Grade 1 and ADA reduced opening force requirements. It installs quickly, accurately, and offers a variety of options.

  • Includes Non-handed 1460-3049SCNS Spring Hold Open Cush-n-Stop Arm (SHCUSH)
  • For potentially abusive applications features solid forged steel main arm and forearm with spring loaded stop in the soffit shoe
  • ƒHandle controls hold-open function
  • Parallel arm mount only (push side)
  • Cast iron cylinder with full-complement bearing

Quality and durability

  • All-weather fluid
  • LCN patented Green Dial spring force indicator
  • 30-year warranty

Installation

  • Universal non-handed
  • Peel-n-stick template and standard slim line plastic cover
  • Adjustable spring sizes 1-6

Brand

Finishes

696 Brass (Powder Coated), 695 Dark Bronze (Powder Coated), 693 Black (Powder Coated), 689 Aluminum (Powder Coated), 691 Light Bronze (Powder Coated)

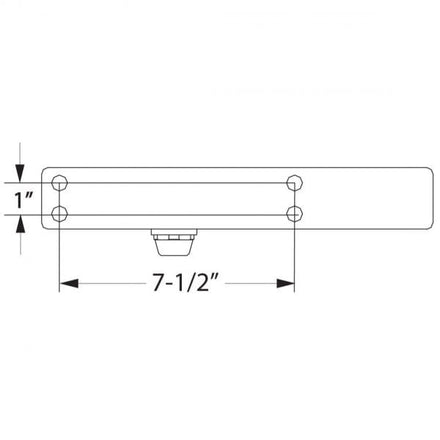

Templating (Hole Pattern)

1" x 7-1/2"

Mounting Options

Parallel Arm (Push Side)

Usage

Medium Duty

Body Construction

Cast Iron Body

Spring Size

Adjustable Spring Size 1-6

Fluid

All Weather Fluid

Handing

Non-Handed

Door Application

Hollow Metal or Wood

Certifications

Grade 1 - ANSI A156.4, UL 10C, ADA, 100 Hour Salt Spray, Meets BAA - Buy American Act

ADA Compliance

Meets ADA requirements - A117.1 Accessibility Code

Fire-Rating

Non-Rated with Hold Open Arm

Cover

Slim Cover Standard (Full Cover Optional)

Fasteners

Self Reaming and Tapping Screws (SRT)

Warranty

30 Years

Buy American Act Compliance

Meets Buy American Act - Made in USA
