Hager 3810S Passage Mortise Lock with Sectional Trim, WTN (Withnell) Lever

$260.07
Usually Ships:  20-30 Business Days
  • Heavy-Duty, ANSI/BHMA Certified Grade-1
  • ANSI Function: F01 – Passage
  • WTN Withnell Lever

Available Options:

Clear
Added to Cart

Product Overview

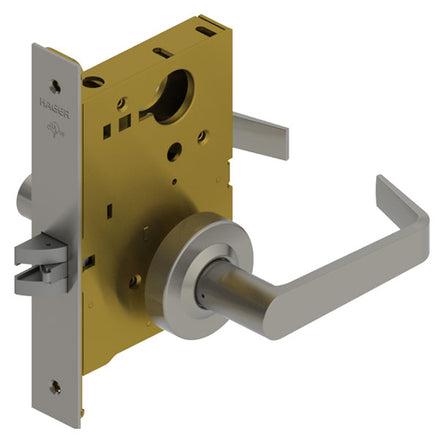

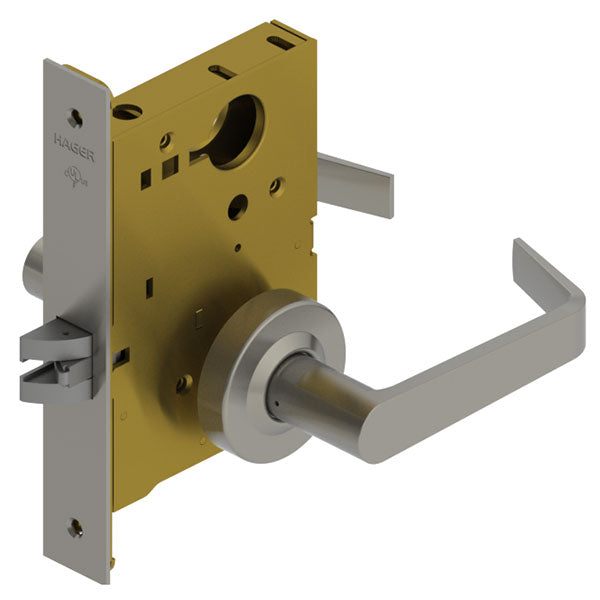

Hager 3810 SECT US26D WTN, ANSI/BHMA Grade 1 Certified Mortise Lock, Passage Function, Sectional Withnell WTN Lever Trim, Satin Chrome Finish

Hager 3800 Series mortise lock provides maximum security and durability for the harshest environments.

ANSI F01 – Passage – Latchbolt retracted by lever from either side at all times.

  • BHMA Certified ANSI A156.13, Series 1000, Grade 1
  • UL/cUL Listed for all functions up to 3 hours "A" label single doors
  • ADA Compliant ANSI A117.1 Accessibility Code
  • Field reversible handing

codes

Brand

Finishes

US26D (626) Satin Chrome

Lock Function

Passage

ANSI Function

F01

Usage

Heavy Duty

ANSI/BHMA Standard

Certified ANSI/BHMA A156.13, Series 1000

ADA Compliance

Meets ADA requirements - A117.1 Accessibility Code

Fire-Rating

UL and cUL Listed - up to 3 Hours

Lever Design

WTN (Withnell)

Handing

Body is easily field reversible (shipped LHR by default)

Backset

2-3/4"

Latchbolt

3/4" (19 mm) throw with anti-friction tongue, all stainless steel

Strike

1-1/4" x 4-7/8" (32 mm x 124 mm) ASA strike

Door Thickness

1-3/4"

Warranty

Limited Lifetime Warranty
