Hager

Hager 2570 SFIC NC WTN Classroom Lever Lock

$80.21
Usually Ships:  3-5 Business Days
  • Meets BHMA/ANSI A156.2 Grade 2 standards
  • ANSI function: F84 – classroom
  • Prepped for SFIC core (core sold separately)

Available Options:

Clear

Product Overview

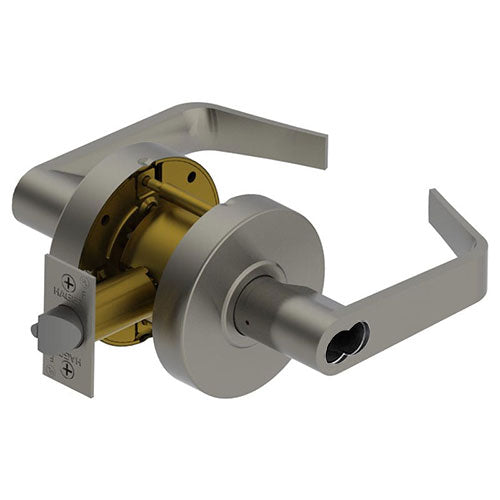

Hager 2570 Classroom Lever Lock, SFIC Prep Less Core, WTH Withnell Lever Design, Satin Chrome Finish

Hager 2500 Series Grade 2 lock is a perfect combination of value and performance and is the ideal choice of lock for typical commercial applications.

Hager 2570 Classroom Function (ANSI F84) – Deadlocking latchbolt operated by lever from either side except when outside lever is locked from outside by key. When outside lever is locked, latchbolt is operated by inside lever.

  • SFIC = Small Size Interchangeable Core (less core)

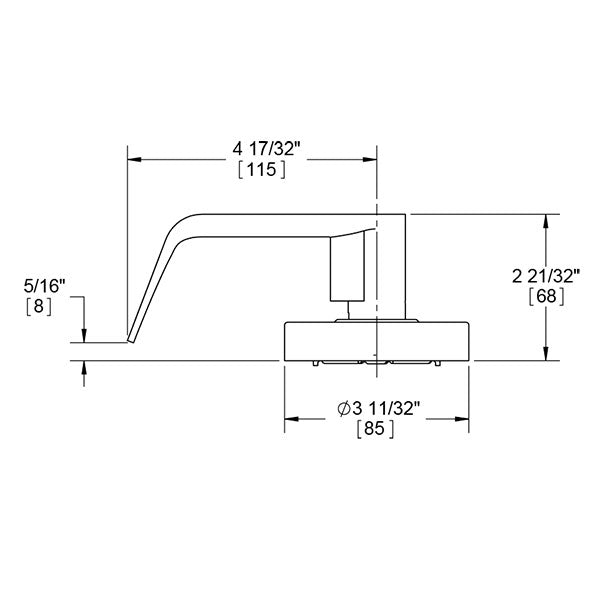

  • WTN - Withnell lever design
  • Standard door prep - 2-1/8" diameter (cross bore), latch hole - 1" diameter (edge bore)
  • No exposed mounting screws

codes

Brand

Finishes

US26D (626) Satin Chrome

Lock Function

Classroom

Cylinder Format

Small Format Interchangeable Core (SFIC)

Cylinder

Less Interchangeable Core

ANSI Grade

Meets BHMA ANSI A156.2, Series 4000, Grade 2

Usage

Medium Duty

Latch

1/2” throw, deadlocking - 1-1/8" x 2-1/4" face

Backset

2-3/4"

Strike

4-7/8” x 1-1/4” ASA/ANSI strike with curved lip to meet ANSI A115.2 door frame preparation

ADA Compliance

Meets ADA requirements - A117.1 Accessibility Code

Lever Design

WTN (Withnell)

Handing

Non-Handed

Fire-Rating

UL/cUL listed up to 3 Hours

Door Thickness

1-3/8" to 1-3/4"

Warranty

5 Year
