Falcon

Falcon W581PD HANA Storeroom Knob Lock

$42.03
Usually Ships:  1-2 Business Days
  • Certified ANSI/BHMA A156.2, Grade 2
  • ANSI Function F86 – Storeroom
  • UL listed, 3 hour fire-rated

Available Options:

Clear

Product Overview

Falcon W581CPD HAN Grade 2 Storeroom Cylindrical Lock, Schlage C Keyway, Hana Knob, Standard Rose

The Falcon W Series offers a quality product at a value price, and is backed by one of the best names in the business - Allegion.

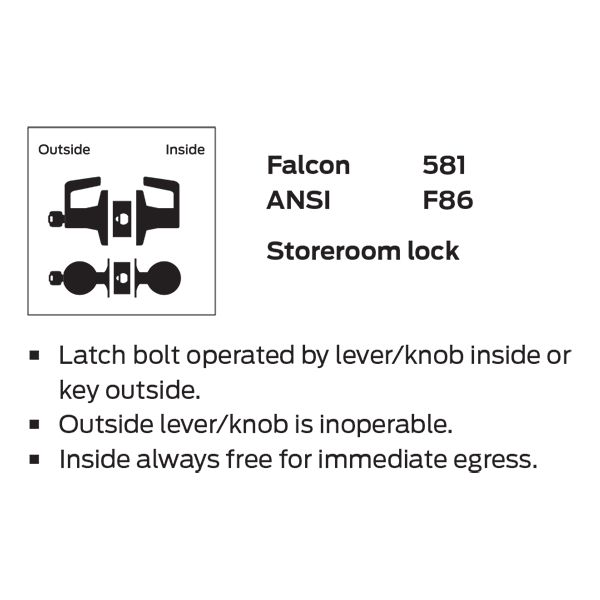

ANSI Function F86 - Deadlocking latch bolt by knob inside or key outside. Outside knob is always locked. Inside knob is always free.

Knobs are constructed of brass or cold-formed steel and are zinc-plated and dichromated for rust resistance. Springs are stainless steel. Roses are heavy-wrought brass or bronze, installed over wrought steel reinforcing plates. Knobs are brass or bronze, secured by a steel knob retainer, which cannot be depressed when lock has been locked.

Brand

Finishes

626 Satin Chrome, 613 Oil Rubbed Bronze

Lock Function

Storeroom

Cylinder & Keys

6-pin conventional, keyed different, with 2 keys

Keyway

Schlage C Keyway

Usage

Medium Duty

ANSI/BHMA Standard

Tested and certified under ANSI/BHMA A156.2, Grade 2

Fire-Rating

UL/cUL listed up to 3 Hours - UL symbol on the latch front

Latch

1/2” throw, deadlocking - 1-1/8" x 2-1/4" face

Backset

2-3/4"

Strike

4-7/8” x 1-1/4” ASA/ANSI strike with curved lip to meet ANSI A115.2 door frame preparation

Handing

Non-Handed

Door Thickness

1-3/8" to 1-3/4"

Warranty

10 Year Limited
