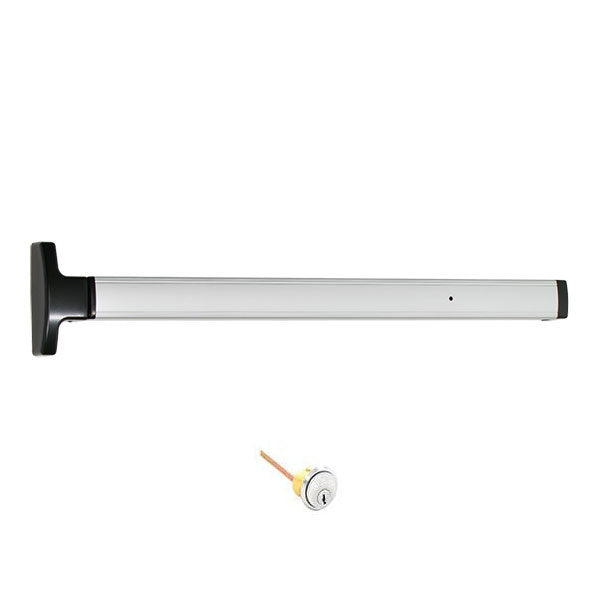

Falcon 1692NL-OP/HB-OP Concealed Vertical Rod Touchbar Exit Device with 169CA and Rim Cylinder

$438.18
This item ships FREE! Usually Ships:  1-2 Business Days
  • BHMA/ANSI Grade 1 certified
  • Fits door stiles as narrow as 1-3/4″
  • For use with aluminum storefront doors

Available Options:

Clear

Product Overview

Falcon 1692NL-OP/HB-OP Concealed Vertical Rod Pushpad Exit Device, 36 In., Night Latch/Hold Back, Optional Pull, with 169CA and Rim Cylinder

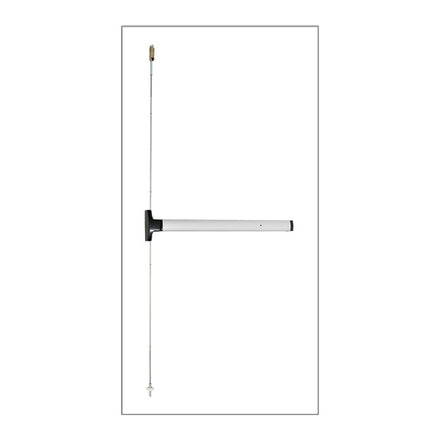

The design of the 1690 is ideal for demanding, moderate-traffic applications. The vertical rods and latch mechanisms are concealed in the vertical door stile, ensuring trouble-free operation. Cast metal cover plates and end caps hold up to rigorous use. A quick, single-point dogging feature in the housing deactivates the device, permitting unrestricted traffic flow. The 1690 may also be used to retrofit a 1990 Series crossbar device.

  • 1692NL-OP/HB-OP = With “C Keyway” Rim Cylinder (No Outside Trim Included)

HB-OP – Hold back, cylinder only: key retracts latch and holds latch back, no pull
NL-OP – Night latch, cylinder only: key retracts latch but does not unlock exit device, no pull

  • Projections: 3-3/8" in neutral position - 2-3/8" in dogged position
  • Stile: 1-3/4 " Minimum
Brand

Finishes

DC35 Black Anodized Aluminum, DC13 Anodized Duranodic, US28 (628) Anodized Aluminum

Length

36" (30" to 36" Door Width)

Door Height

7'0" (Standard)

Usage

Medium Duty

ANSI Grade

Carry UL label and approved for life safety. Certified ANSI A156.3 grade 1 standards.

Trim

169CA and Rim Cylinder

Keyway

Schlage C Keyway

Stile Type

Narrow

Fasteners

All machine screw mounting. Device mounting fasteners are concealed, latch fasteners are exposed to egress side.

Handing

Non Handed – Completely Reversible

Minimum Stile Width

1-3/4"

Device Type

Concealed Rod Device

Door Applications

1-3/4" Aluminum Doors
