Dormakaba

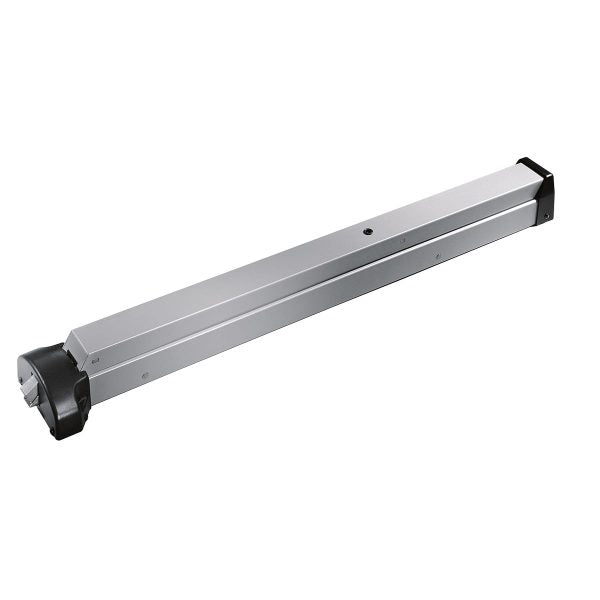

Dormakaba 8300 x 8R08 Panic Rim Exit Device with Key-in-Lever Trim

$580.21
This item ships FREE! Usually Ships:  2-3 Business Days
  • ANSI/BHMA Grade-1 Certified
  • ANSI function 08 (key locks/unlocks lever)
  • Includes 8R08-D lever trim

Available Options:

Clear

Product Overview

Dorma 8300/F8300 Grade 1 Rim Exit Device, Wide Stile Pushpad, 8R08 D Trim, R Lever, KIL Cylinder, 6-Pin Schlage C Keyway

The 8000 Series exit devices with deadlocking latch bolts minimize forced entry while offering a low-cost solution to security and life safety requirements. The touchbar, rail assembly and integral parts are constructed of solid steel.

  • ANSI Function 08 (Classroom): Entrance by lever. Key locks or unlocks lever.
  • Complies with NFPA 101 life safety code. Fire-rated devices comply with NFPA 80 fire doors and windows.
  • Fits standard 1-3/4”- 2-1/4” thick doors
  • Size B = 36", Size A = 48"
  • F8300 - 3-Hour Fire-Rated
  • 689 aluminum finish device with 626 satin chrome lever

8R08-D Trim

  • 8R08-D-SC-KD
  • ANSI Function: 08 (classroom)
  • Includes Dorma 7013SC KD key-in-lever cylinder
  • Schlage C keyway, keyed differnt
  • 626 satin chrome finish lever
Brand

Finishes

689 Aluminum (Powder Coated)

ANSI/BHMA Standard

Certified/listed to ANSI/BHMA 156.3, Grade 1 for exit devices

Usage

Medium Duty

Fire-Rating

8300: Non-Fire-Rated - F8300: 3 Hour Fire-Rated

ADA Compliance

Meets ADA requirements - A117.1 Accessibility Code

Lever Design

Rectangular “R” Lever

Cylinder

7013SC key-in-lever cylinder

Keyway

Schlage C Keyway

Latchbolt

Deadlocking

Strike

463 Standard

Dogging Feature

Hex key dogging standard on non-fired-rated devices

Stile Type

Wide (Standard)

Handing

Completely Reversible
