Detex 1008D Advantex Rim Exit Device with Escutcheon Lever Trim, Classroom Function

$1,848.60
This item ships FREE! Usually Ships:  1-2 Business Days
  • Heavy Duty, ANSI/BHMA Grade-1 Certified
  • Includes 08DS trim (cylinder sold separately)
  • ANSI function 08: key locks or unlocks lever (classroom)

Available Options:

Clear

Product Overview

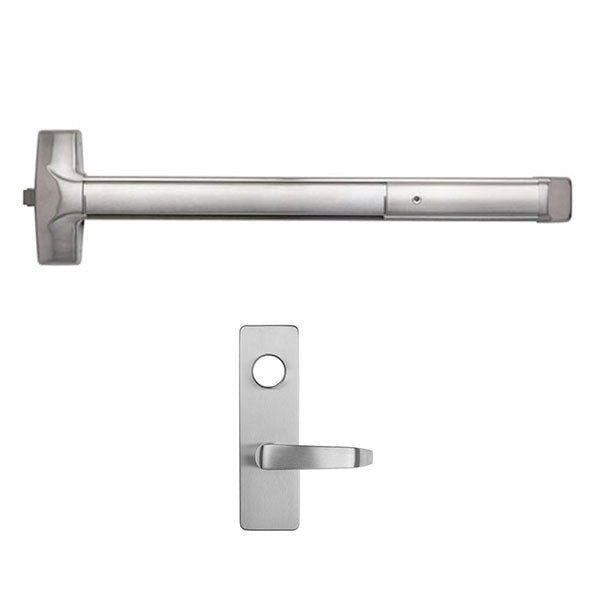

Detex 1008D Advantex Rim Exit Device with Escutcheon Lever Trim, Classroom Function, 99 Surface Strike

The 10 Series rim exit device is a super-heavy-duty panic rim exit device for use on all types of single and double doors with mullions. The patented mounting plate and strike locator system ensures the easiest and most accurate installation of panic hardware available.

  • Tough and durable design for years of trouble-free service in high-use, high-abuse environments
  • Patented mounting plate and strike locator system replaces paper templates
  • Heavy-duty angled end cap deflects damage away from device
  • All exposed surfaces are finished over stainless steel with PVD, an environmentally-friendly finishing process
  • Tested beyond 1,000,000 cycles – Twice the cycling required for Grade 1 UL testing
  • Stainless steel deadlocking, Pullman-type latch bolt
  • Non-handed
  • Field sizeable
  • ANSI/BHMA certified A156.3
  • UL Listed Panic Hardware
  • F Prefix = UL Listed Fire Exit Hardware for 3 hours, maximum 4’x10’ single doors and pairs of 8’x8’ with F90KR keyed removable mullion

08DS Trim

  • ANSI Function: 08 – Entrance by lever. Key locks or unlocks lever (classroom trim)
  • Escutcheon plate size: 2-3/4″ x 9-1/16″ x 7/8″
  • S lever style furnished standard
  • Mortise cylinder must be ordered separately
  • Break-away type lever to prevent permanent damage from vandalism and abuse

Brand

Finishes

630 Satin Stainless Steel, SP313 (695) Dark Bronze, SPBLK (693) Black

Trim

08DS Lever Trim

Cylinder

Mortise Cylinder Required with Standard Cam (Sold Separately)

ANSI/BHMA Standard

ANSI/BHMA certified A156.3

Usage

Heavy Duty

Fire-Rating

"F" prefix model = 3-hour Fire-Rating, UL Listed

Latchbolt

Stainless steel deadlocking, Pullman-type latch bolt

Strike

99 strike standard

Handing

Non-Handed

Stile Type

Wide (Standard)

Minimum Stile Width

4-5/8” with standard 99 strike

Dogging Feature

Hex key dogging standard on non-fired-rated devices

Door Thickness

1-3/4" to 2-1/4"

ADA Compliance

Meets ADA requirements - A117.1 Accessibility Code

Buy American Act Compliance

Meets Buy American Act - Made in USA
