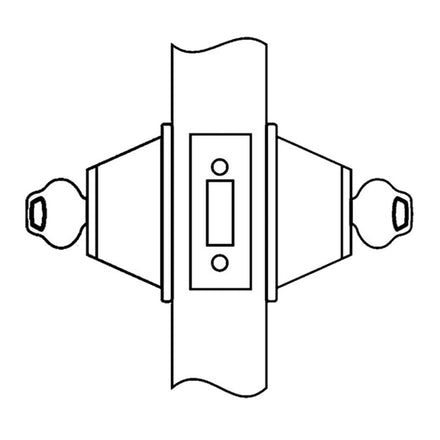

Corbin Russwin DL3012 Double Cylinder Deadbolt

$288.29
Usually Ships:  1-2 Business Days
  • ANSI/BHMA A156.36 Certified Grade 2
  • Double Cylinder (key on both sides)
  • UL-cUL Fire-Rated Up to 3 Hours

Available Options:

Clear

Product Overview

266.91Corbin Russwin DL3012 Double Cylinder Deadbolt, Grade-2, 2-3/4" Backset

The DL3000 Series is a strong, reliable deadbolt for standard application

ANSI E0141 Double Cylinder Deadlock

  • By key either side



Brand

Finishes

US26D (626) Satin Chrome, US10B (613) Oil Rubbed Bronze, US26 (625) Bright Chrome, US3 (605) Bright Brass, US10 (612) Satin Bronze, US4 (606) Satin Brass, BSP Black Suede Powder Coat, WSP White Suede Powder Coat, US10BE (613e) Dark Oxidized Satin Bronze, Equivalent

ANSI/BHMA Standard

A156.36 Certified Grade 2

Usage

Medium Duty

ANSI Function

E0141

Deadbolt Type

Double Cylinder

Cylinder & Keys

6-pin conventional, keyed different, with 2 keys

Keyway

Corbin Russwin L4 Keyway

Bolt

Zinc diecast hardened steel insert. 1" (25mm) throw, 5/8" (16mm) wide x 3/4" (19mm) high

Backset

2-3/4"

Strike

1-1/8” x 2-3/4“ square corner

Fire-Rating

Fire Rated - UL10C - Positive Pressure
