Cal-Royal

Cal-Royal CGN09 Institution Lever Lock

$190.28
Usually Ships:  2-3 Business Days
  • Heavy-Duty, BHMA/ANSI Grade 1 certified
  • Double cylinder, both sides opened by key, always locked
  • ADA compliant, 3-hour fire-rated

Available Options:

Clear

Product Overview

Cal-Royal Genesys Series, CGN09 Institution Lever Lock

For Offices, Schools, Hospitals, Apartments, Hotel / Motel, Residential, Commercial and Public Buildings

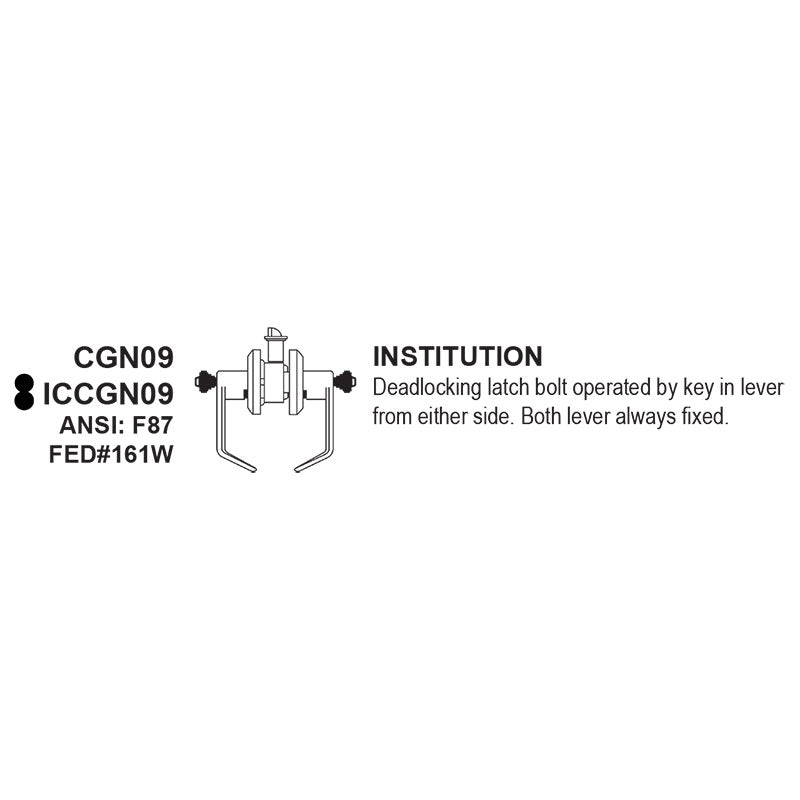

ANSI Function F87 – Deadlocking latch bolt operated by key in lever from either side. Both levers always fixed.

  • Meets or exceeds BHMA / ANSI A 156.2 Series 4000, grade 1 requirements
  • Heavy-duty cylindrical leversets
  • Clutch mechanism, fixed thru-bolt installation
  • ADA Compliant

codes

Brand

Finishes

US26D (626) Satin Chrome, US10BE (613e) Dark Oxidized Satin Bronze, Equivalent

Lock Function

Institution / Asylum

ANSI/BHMA Standard

ANSI/BHMA A156 2 Series 4000 Grade 1

Usage

Heavy Duty

Keyway

Schlage C Keyway

Latch

1/2” throw, deadlocking - 1-1/8" x 2-1/4" face

Backset

2-3/4"

Strike

4-7/8” x 1-1/4” ASA/ANSI strike with curved lip to meet ANSI A115.2 door frame preparation

Handing

Non-Handed

Door Thickness

1-3/8" to 1-3/4"

Fire-Rating

UL/cUL listed up to 3 Hours
