Babcock Davis

Babcock Davis BSRCAY Roof Hatch Safety Railing

$2,128.50
Usually Ships:  3-5 Business Days
  • OSHA Compliant
  • Self-Closing Gate
  • Easy Field Installation

Available Options:

Clear

Product Overview

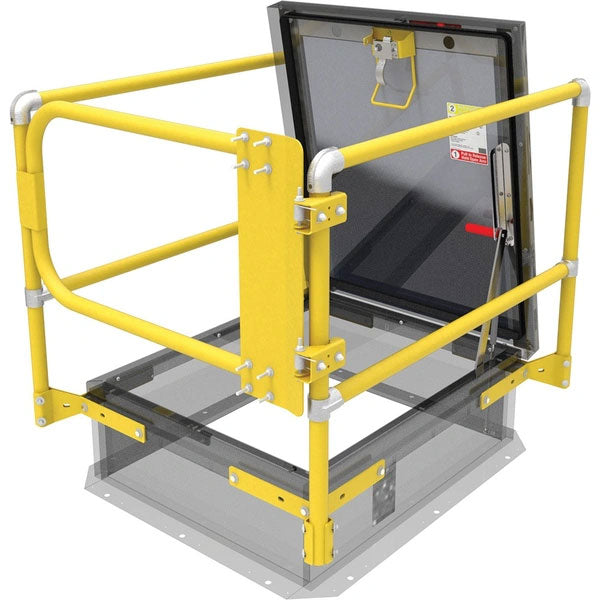

Babcock Davis BSRCAY Roof Hatch Safety Railing, For Standard Roof Hatch Models

The Babcock-Davis OSHA compliant Safety Railing is ideal for new and retrofit applications. The safety railing mounts to the existing roof hatch curb counterflash without penetrating the membrane.

EASY FIELD INSTALLATION
No field cutting required as rails are cut to exact size. Easy assembly fittings and quick mounting on counterflash using a patented nut backing plate.

SELF-CLOSING GATE
Designed to automatically close, the gate is constructed with spring-loaded hinges to protect against falls.

Comes with standard chain barrier with easy spring clip attachment to guard against falls. (Not OSHA compliant)

Models

  • SRCAY36X30FG - 36" x 30" - Front Access
  • SRCAY36X36FG - 36" x 36" - Front Access
  • SRCAY48X48FG - 48" x 48" - Front Access
  • SRCAY30X54SG - 36" x 54" - Side Access
  • SRCAY30X96SG - 30" x 96" - Side Access
Brand

Model

SRCAY36X30FG, SRCAY30X54SG, SRCAY30X96SG, SRCAY36X36FG, SRCAY48X48FG

Finishes

Safety Yellow Powder Coat

Material

Rails and posts, aluminum, 1-1/4 inch ID (1.66 inch OD) Schedule 40 pipe

Fittings

Cast aluminum alloy with set screw hold

Mounting Brackets

3/16 inch steel, zinc plated with nut backing plate

Hardware

Hex head bolts 3/8 inch - 16 x 3/4 inch zinc plated steel

Exit

Aluminum 1-1/4 inch tubular steel self closing with coil spring

Compliance

OSHA 29 CFR 1910.28 and 1910.29 requirements for fall protection; supports 200lbs force

Warranty

5 Year
