Von Duprin

Von Duprin 3327A-L Narrow Stile Surface Vertical Rod Exit Device with Lever

$2,709.30
This item ships FREE! Usually Ships:  2-3 Business Days
  • Heavy Duty, ANSI/BHMA Certified Grade-1
  • Fits Door Stiles as Narrow as 1-3/4"
  • Includes 360L Lever (Key locks/unlocks lever)

Available Options:

Clear

Product Overview

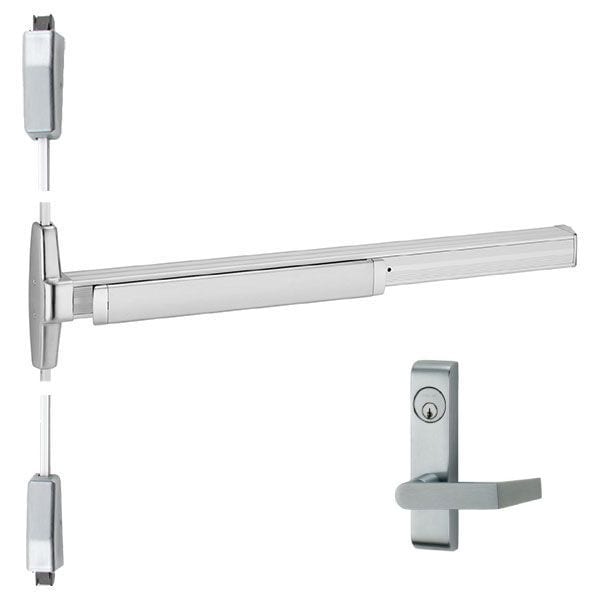

Von Duprin 3327A-L Narrow Stile Surface Vertical Rod Exit Device with Lever

The 33 Series has been certified to the highest industry standards and are used in schools, hospitals and government buildings. The 33 Series is a high-performance heavy-duty push pad exit device. Von Duprin customers are supported by industry-leading expertise. Allegion’s representatives average more than 15 years of experience, so you’re assured to receive knowledgeable advice on fire and life safety codes, installation resources and more.

  • 3'0" Length (for doors 2'4" to 3'0" wide)
  • For doors up to 7'0" height

360L Lever Trim

  • ANSI Function: 08 or 09
  • Base Size: 7-1/2" x 1-11/16" x 7/8"
  • Projection: 3"
  • Cylinder Type: 1-1/4" Mortise Cylinder (Sold Separately)

Brand

Length

3'0"

Trim

360L Lever

Cylinder

1-1/4" Mortise Cylinder (sold separately)

Hand

Device Non-Handed - Lever Ships as RHR (Field Reversible)

ANSI Grade

Certified ANSI A156.3-2001 Grade 1 standards

Usage

Heavy Duty

Fire-Rating

Non-Fire-Rated

Latchbolt

Deadlocking

Strikes

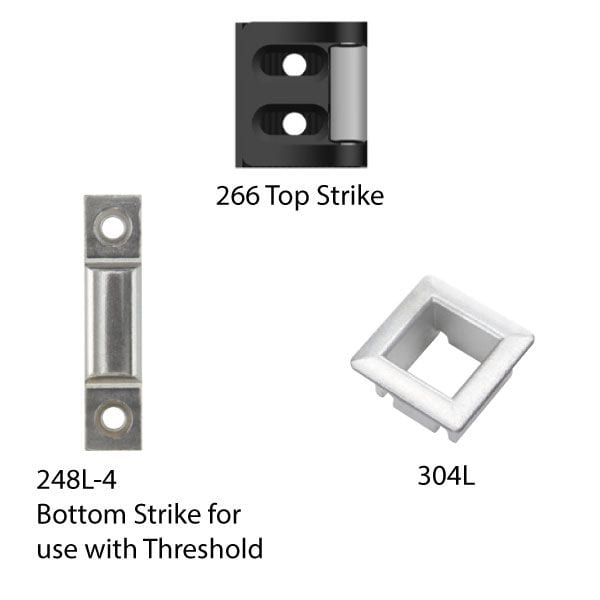

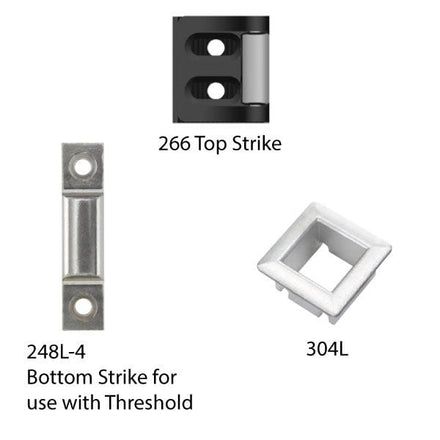

Device is furnished standard with 266, 248L-4 and 304L strikes

Dogging Feature

Half turn hex dogging standard

Device Type

Surface Rod Device

Stile

1-3/4" Minimum

Stile Type

Narrow

Door Height

Standard rods accommodate 7'0"

Buy American Act Compliance

Meets Buy American Act - Made in USA

Finishes

US28 (628) Anodized Aluminum, 313 Duranodic Dark Bronze
