Cal-Royal

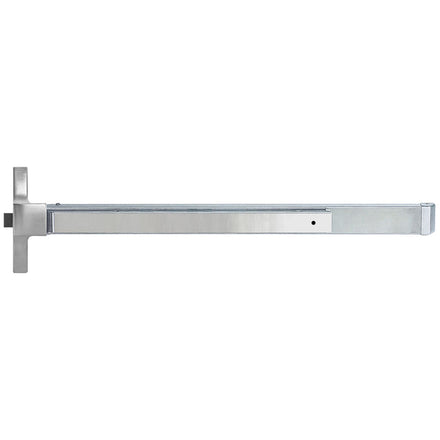

Cal-Royal GLS9800 Narrow Stile Rim Exit Device

$441.82
This item ships FREE! Usually Ships:  2-3 Business Days
  • Heavy Duty, ANSI/BHMA Grade-1 Certified
  • Ideal for aluminum storefront glass doors
  • Exit only (trim sold separately)

Available Options:

Clear

Product Overview

Cal-Royal GLS9800 & FGLS9800 Grade-1 Narrow Stile Rim Exit Device, Exit Only

The 9800 Series offers uncompromising security and safety in single and double fire exit doors. For use in institutions, schools, universities, and commercial buildings where heavy-duty, reliable operation is a requirement.

  • Exit Only - (Outside Trim Sold Separately)
  • Non-handed and easily reversible
  • For 1-3/4" Thick Wood, Metal, or Aluminum Glass doors with 1-3/4" minimum stile width, 1-3/4" thickness for single or double door application
  • UL and ULC Listed: GLS9800 Series for Panic & Safety for all types of 4’ x 8’ single doors and 8’ x 8’ double doors. FGLS9800 Series for all types of 4’ x 8’ single doors for up to 3-hour fire-labeled installations. Conforms to UL10C and UBC7-2-1997 codes.
Brand

Finishes

US32D (630) Satin Stainless Steel, US10B (613) Oil Rubbed Bronze

Length

36" (For 30” to 36” doors), 48" (For 37” to 48” doors)

Usage

Heavy Duty

ANSI/BHMA Standard

Certified ANSI/BHMA A156.3, Grade 1

Fire-Rating

9800EO: Non-Rated - F9800: UL Listed 3 Hour Rated

Includes Trim

No

Dogging Feature

Hex key dogging standard on non-fired-rated devices

Latchbolt

Stainless steel 3/4” throw with anti-pick feature

Strike

246 packed standard

Handing

Non Handed – Completely Reversible

Projections

Neutral 2-3/4" - Depressed 1-7/8"

Stile Type

Narrow

Minimum Stile Width

1-3/4"

Door Thickness

1-3/4"

Warranty

Limited Lifetime Warranty
