ALREX

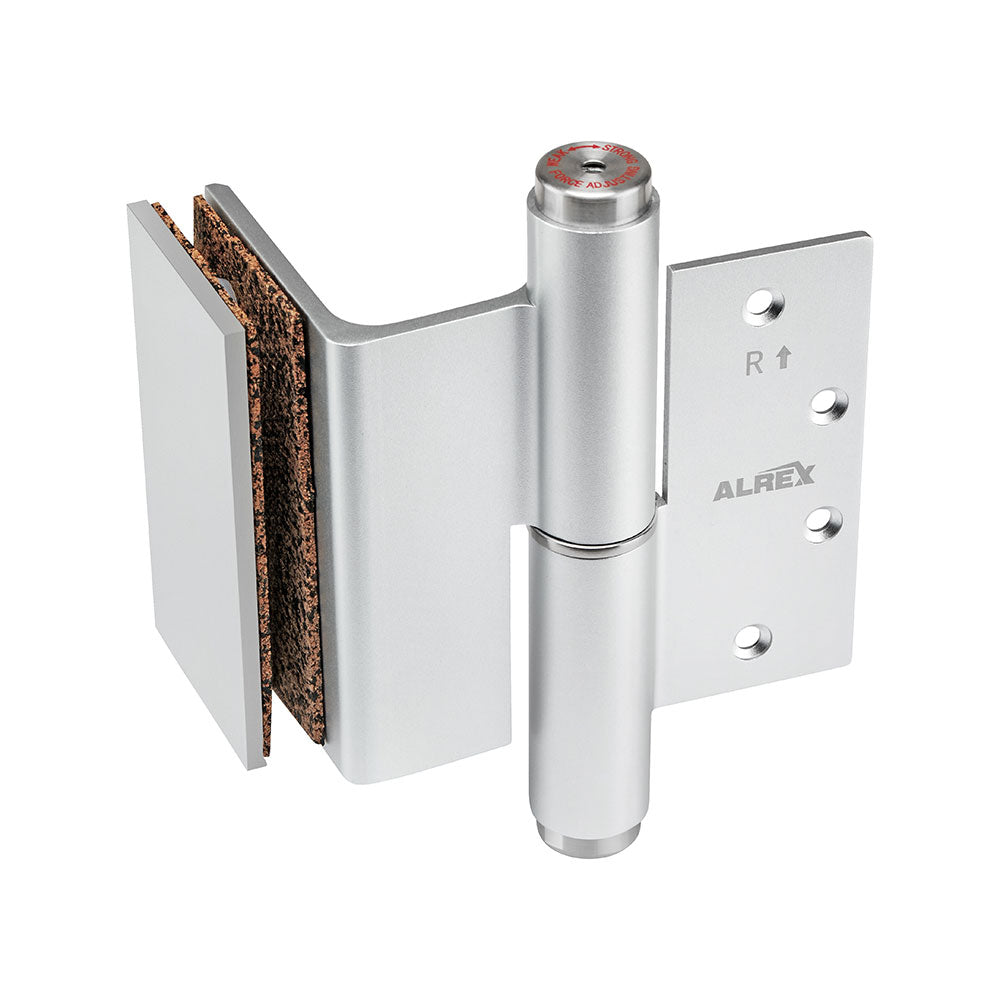

ALREX AXP-G Glass Door Hydraulic Closer Hinge, 4.5" Height

$143.19
Usually Ships:  2-3 Business Days
  • Contains all the features of a door closer
  • For 8 mm - 12 mm glass thickness
  • Ensures perfect glass door alignment without shimming

Available Options:

Clear

Product Overview

ALREX PRO GLASS AXP-G Hydraulic Door Closer Hinge for Glass Doors, 4-1/2" Height

The ALREX PRO GLASS Hydraulic Door-Closer Hinge redefines door control, blending hydraulic precision with spring-hinge reliability. Built for demanding environments, its heavy-duty design ensures smooth, code-compliant performance while preventing disruptive slams. Perfectly designed for glass doors in all environments.

Key Features

  • For 8 mm - 12 mm glass thickness
  • Hole Pattern: ANSI (on frame)
  • Heavy Duty Performance: Stainless-steel bearings + marine-grade aluminum alloy construction withstands 1M+ cycles (ANSI BHMA 156.17 certified).
  • Easy Installation: Ensures perfect glass door alignment without shimming.
  • Patent #10633905: Innovative engineering backed by patented technology.

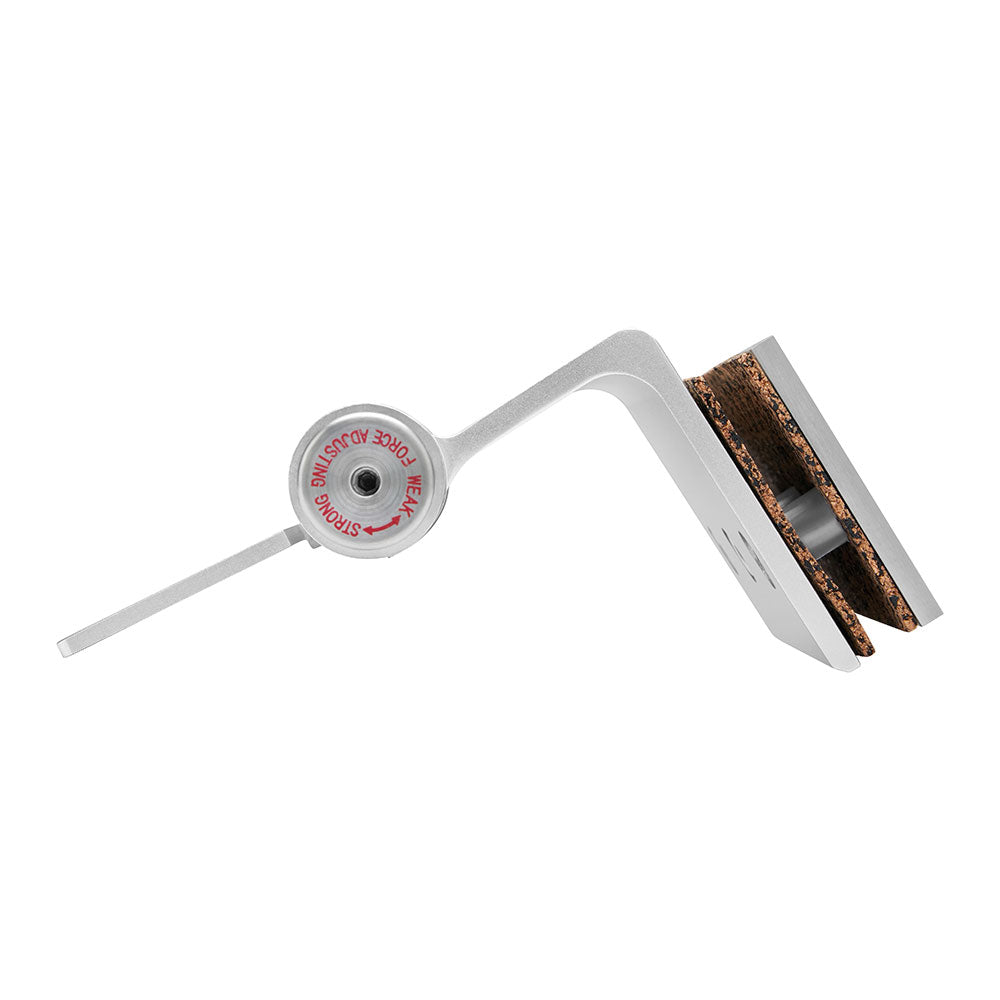

  • Intelligent Speed Control: Adjustable hydraulic tension ensures smooth closing, preventing abrupt closures even in all areas.
  • Architectural-Grade Aesthetics: Slim profile integrates seamlessly with modern door designs.
  • Positive Latching Mechanism: Secures doors firmly into frames.
  • 5-Year Warranty: Confidence in quality and performance.

Applications

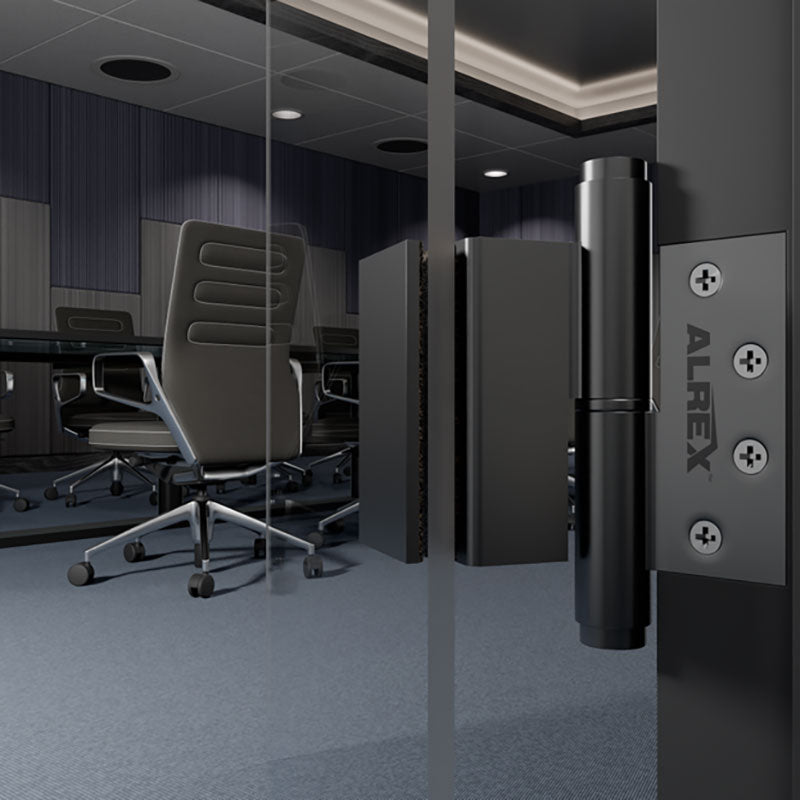

  • Office Partitions
  • Shower Doors
  • Luxury Retail
Brand

Finishes

Clear Anodized Aluminum, Black Anodized Aluminum

Size

4.5"

Gauge

0 .134

Material

Body: Aluminum Aloy - Internal Components: Stainless Steel

Handing

Handed – LH, RH

Temperature Range

-40°F to 212°F

ANSI/BHMA Standard

ANSI BHMA 156.17 Certified

Applications

Glass Doors

Warranty

5 Year
