Alarm Lock

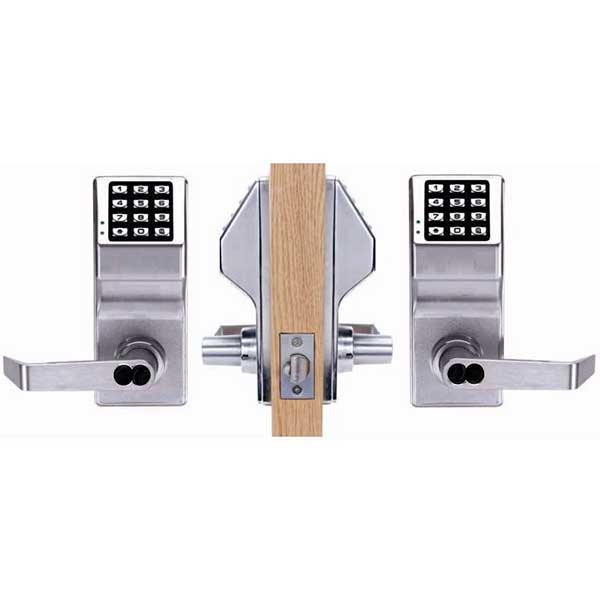

Alarm Lock DL5200IC Trilogy T2 Double-Sided Electronic Standalone Digital Keypad Cylindrical Lock, Small Format Interchangeable Core Prep

$1,139.70
This item ships FREE! Usually Ships:  1-2 Business Days
  • Heavy Duty Grade-1 standalone electronic lock
  • Double-sided with key override (cores sold separately)
  • Ideal for courtyard and pool gates, airport jetway doors, interrogation rooms

Available Options:

Clear

Product Overview

Alarm Lock DL5200IC Pushbutton Cylindrical Door Lock, Double Sided, 100 Users, Weatherproof, Straight Lever, SFIC Prep, Less Core, Satin Chrome

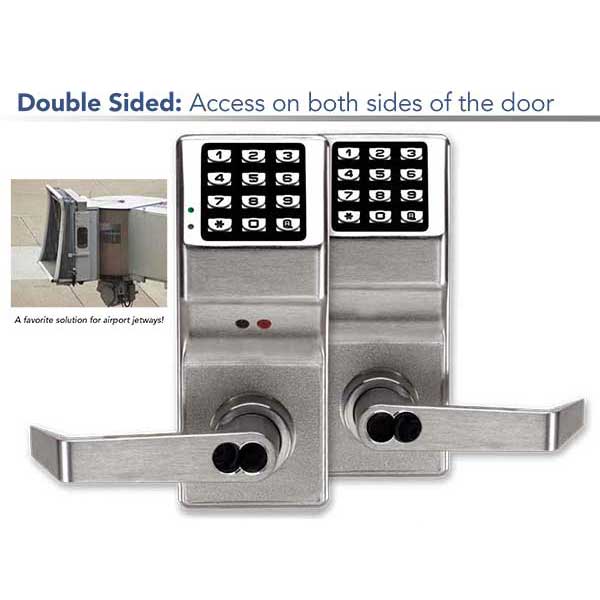

Double-Sided: Access on both sides of the door

  • Incorporates all of the important features of DL2700 (T2) into a double-sided lock
  • Easy to add, delete, change users at the keypad (on primary side of door)
  • Programming user codes on one side of the door works both sides, cutting your time & labor in half
  • Ideal for community pool gates, courtyard gates, airport jetway doors, interrogation rooms, psych wards
  • Comes with LED & audible entry indicators
  • 100 user codes (3-6 digit codes)
  • Battery operation: 5 AA’s; appx. 80,000 cycles; low battery alerts; lock may be hard-wired with 9VDC or 9VAC power supply for remote release / battery backup
  • Visual and audible entry and egress indicators
  • Weatherproof -31˚ to 151˚F (-35˚ to +66˚C) - water-sealed for exterior or interior use
  • 5AA batteries operated, 80,000 cycles, typical
  • Key override on primary door side (key cylinder on other side is to gain access to the battery compartment)
Brand

Usage

Heavy Duty

Finishes

US26D (626) Satin Chrome

Lock Function

Pushbutton Keypad

ANSI Grade

ANSI Grade 1

Cylinder

Prepped for (SFIC) Small Format Interchangeable Core (less core)

Backset

2-3/4"

Strikes

1 1/8" x 2 3/4" T strike & 1 1/4" x 4 7/8" ASA strike included

Door Thickness

1-3/4"

Latch

1/2” throw, deadlocking - 1-1/8" x 2-1/4" face

Handing

Non Handed – Completely Reversible

ADA Compliance

Meets ADA requirements - A117.1 Accessibility Code

Power

5 AA alkaline batteries are now rated at 200,000 cycles, supplied

Operating Temperature

+151°F to -31°F (+66°C to -35°C)

Reader Type

Keypad

Door Applications

Interior or Exterior Doors

Warranty

2 Years
