Alarm Lock

Alarm Lock DL2700WPIC Weatherproof Trilogy T2 Electronic Standalone Digital Keypad Cylindrical Lock, Small Format Interchangeable Core Prep

$451.87
This item ships FREE! Usually Ships:  1-2 Business Days
  • Discontinued 2024
  • All standard Alarm Lock DL2700IC locks are now weatherproof

Product Overview

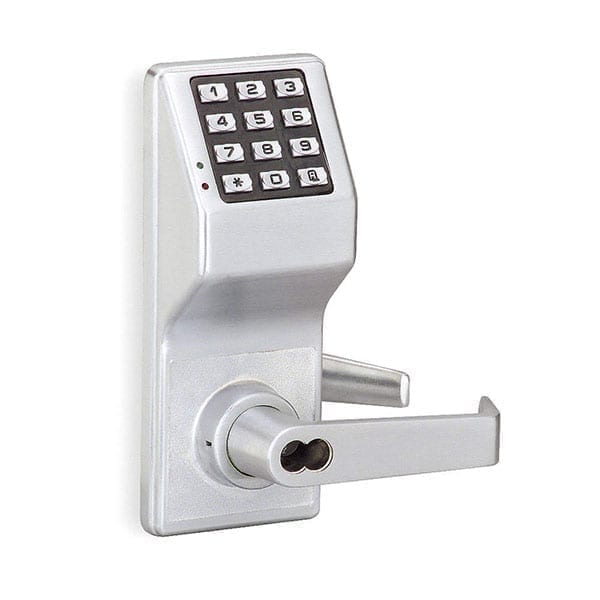

Alarm Lock DL2700WPIC Pushbutton Cylindrical Door Lock, 100 Users, Weatherproof, SFIC Prep, Less Core, Satin Chrome

Trilogy® T2 DL2700: #1 standalone electronic keyless access lock - Durable BHMA Grade 1 digital lock.

OPERATION: Clutch mechanism permits turning lever without retracting latch and reduces stress on lock bodies and spindle. Outside lever free turning in locked position. Entering access code, key bypass, or remote bypass will allow lever to retract latch. Inside lever always instant egress

KEYPAD: All metal, 12 button programmable for multi-level access functions including group or individual user codes, master and management codes, passage and emergency or service code, lockout and remote override capability and allowable entry time from 5 to 20 seconds. 4 Different keypad tones and keypad may be silenced

  • WP Model for weatherproof performance, water-sealed for use inside and out, with operational temperature range of +151°F to -31°F (+66°C to -35°C)
  • Grade 1 Durability. Dependable lockset with rugged clutch mechanism, plus vandal-proof all metal keypad.
  • Ideal for schools, healthcare, pharmacies, rental properties, offices, retail and airports.
  • Multi-level user codes: Master, 10 managers, 90 users, 3 service codes
  • Up to 100 different user codes (3-6 digits) - 100% keypad programmable with a fingertip
  • Easy to install in about an hour, retrofits cylindrical knobsets and digital locks using slightly modified ANSI 161 Series Prep
  • Standalone battery operated; 5 AA batteries rated at 200,000 cycles
  • Non-handed for easy installation and versatility

alarm-lock-applications

Brand

Usage

Heavy Duty

Finishes

US26D (626) Satin Chrome

Lock Function

Pushbutton Keypad

ANSI Grade

ANSI Grade 1

Cylinder

Small Format Interchangeable Core (SFIC) Cylinder (Less Core)

Latch

1/2” throw, deadlocking - 1-1/8" x 2-1/4" face

Backset

2-3/4"

Strikes

1 1/8" x 2 3/4" T strike & 1 1/4" x 4 7/8" ASA strike included

Door Thickness

1-3/4"

Handing

Non Handed – Completely Reversible

ADA Compliance

Meets ADA requirements - A117.1 Accessibility Code

Operating Temperature

+151°F to -31°F (+66°C to -35°C)

Power

5 AA alkaline batteries are now rated at 200,000 cycles, supplied

Reader Type

Keypad

Door Applications

Interior or Exterior Doors
