Adams Rite 8800EL Narrow Stile Rim Exit Device with Electric Latch Retraction for Aluminum Doors

$609.45
This item ships FREE! Usually Ships:  3-5 Business Days
  • For aluminum doors (minimum 2" stile)
  • Patented “Starwheel” bolt interlocks door to frame
  • Solenoid-driven latch retraction

Available Options:

Clear

Product Overview

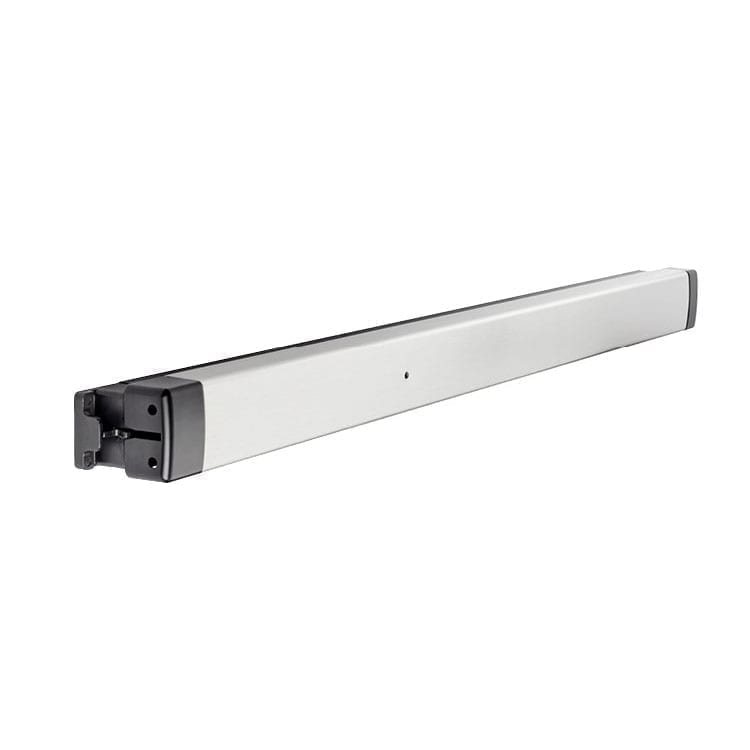

Adams Rite 8800EL Series (Life-Safety) Narrow Stile Starwheel Rim Exit Device, Electric Latch Retraction

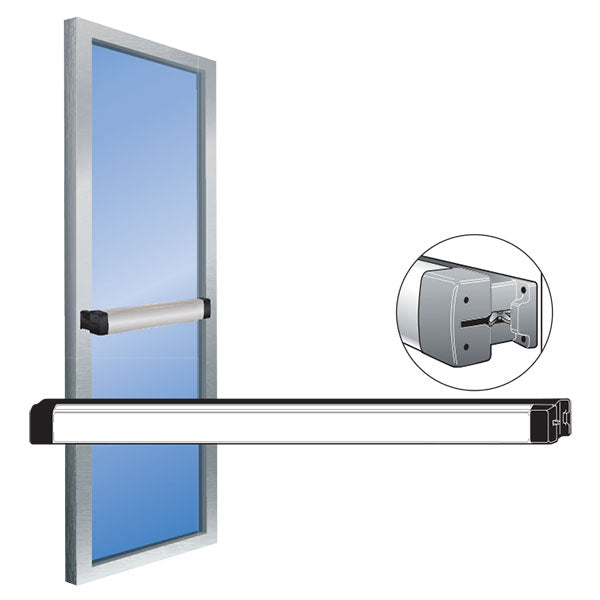

This Adams Rite 8800 rim exit device is for aluminum stile glass storefront doors. A patented "Starwheel" bolt interlocks the door to the frame. The 8800 offers an unobtrusive design for clean sight lines. Designed for use in applications with single doors or pairs of doors with a mullion.

The EL option for rim exit devices uses a solenoid mounted under the pushbar for instantaneous unlocking and locking of the exit device from a remote location or access control device. Because electrical operation of device is fail-secure, this option can be used on fire-rated as well as life-safety applications. In the event of a power failure, device automatically relocks.

  • Solenoid driven latch retraction
  • EL requires 1.5A at 12 VDC and 600 mA at 24 VDC
  • Continuous or intermittent use
  • Configured for fail-secure. In the event of a power failure, the exit device defaults to latched condition
  • Available for panic and fire exit hardware
  • Compatible with REX monitoring
  • Patented “Starwheel" bolt interlocks door to frame
  • Strong, durable construction for a high level of security
  • Unobtrusive design for clean sight lines
  • ANSI/BHMA A156.3, Grade 1
  • UL Listed UL 305 Panic Hardware
  • Standard sizes: dimensioned for 36" 42", and 48" openings. Standard width bars can be field cut to the next smallest opening width.
  • Available in Aluminum (8801), Dark Bronze (8802), and Black (8803)
Brand

Finishes

335 Black Anodized, 313 Duranodic Dark Bronze, 628 Anodized Aluminum

Length

36", 42", 48"

Voltage

EL-12 VDC – 1.5 Amps inrush/hold, EL-24 VDC – 0.6 Amps inrush/hold

Usage

Medium Duty

ANSI Grade

ANSI/BHMA A156.31, Grade 1

Fire-Rating

Non-Fire-Rated

Handing

Non-Handed

Stile Type

Narrow

Stile

Minimum 2" Stile. Fits narrow, medium, and wide stile aluminum doors

Dogging Feature

No Manual Dogging - Electric Latch Retraction

Strike

Standard strike and narrow versions for centering doors in 4"jamb (both strikes included)

Fasteners

Standard self-tapping screws

Projections

2-5/8" when fully projected, 1-5/8" when dogged

Door Applications

1-3/4" Aluminum Doors
