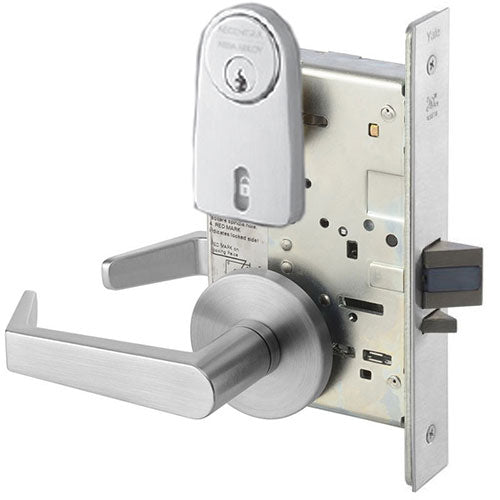

Accentra (Formerly Yale) AUR 8864FL Bathroom Mortise Lock with Indicator, Augusta Lever, Standard Rose

$419.59

This item ships FREE! Usually Ships: 20-30 Business Days

Available Options:

Finish
Cylinder

Quantity:

Added to Cart

Accentra (formerly Yale) AUR8864FL ANSI/BHMA Grade 1 Certified Mortise Lock, Bathroom Mortise Lock with Indicator, Sectional Augusta AUR Lever/Rose Trim

Accentra 8800 Series Mortise Locks are designed and manufactured for uncompromising strength and durability in a range of commercial applications.

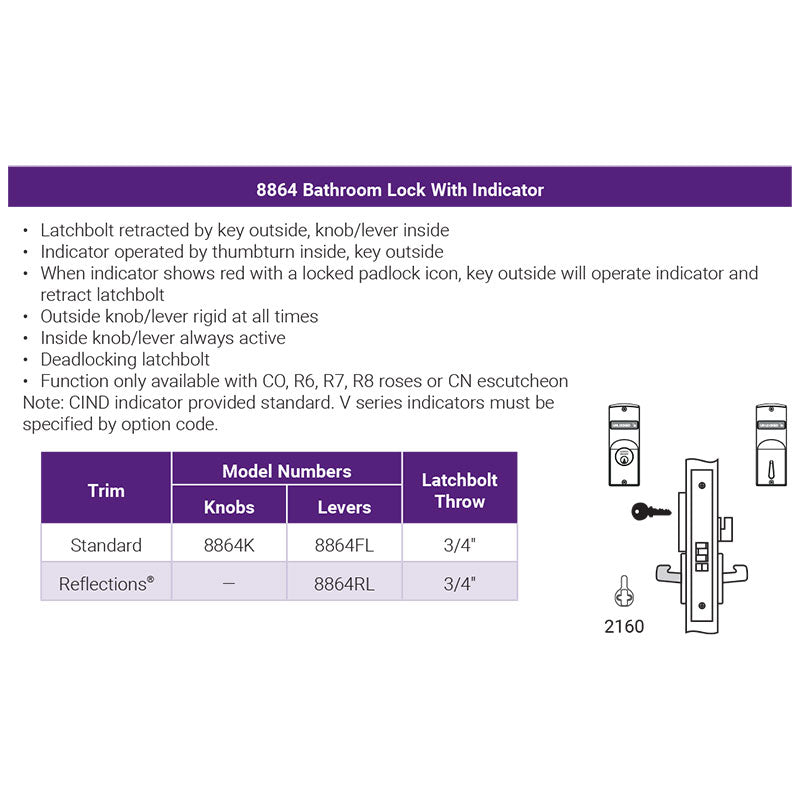

Bathroom Mortise Lock with Indicator

Latchbolt retracted by key outside, knob/lever inside
Indicator operated by thumbturn inside, key outside
When indicator shows red with a locked padlock icon, key outside will operate indicator and retract latchbolt
Outside knob/lever rigid at all times
Inside knob/lever always active
Deadlocking latchbolt

Note: CIND indicator provided standard. V series indicators must be specified by option code. Indicator shows deadbolt position only

Requires 2153 or 2553 1-1/8″ Mortise Cylinder w/ 2160 Cam

codes

Brand	Accentra (Formerly Yale)
Finishes	626 Satin Chrome, 613e Dark Oxidized Satin Bronze equivalent, BSP Black Suede Powder Coat
Cylinder	2153 (Para Keyway) or 2553 (Schlage C Keyway) 1-1/8" Mortise Cylinder w/ 2160 Cam
Lock Function	Privacy with Indicator
Usage	Heavy Duty
ANSI/BHMA Standard	Certified ANSI/BHMA A156.13, Series 1000
ADA Compliance	Meets ADA requirements - A117.1 Accessibility Code
Fire-Rating	UL and cUL Listed - up to 3 Hours
Handing	Right hand is standard; Reversible in the field
Backset	2-3/4"
Latchbolt	3/4" throw, stainless steel one-piece anti-friction
Strike	4-7/8" Curved Lip Strike with a 1-1/4" lip length
Case	wrought steel, zinc dichromated
Hubs	3/8" solid steel, fine-blanked and heat treated for additional strength
Armored Front	8" x 1-1/4"
Door Thickness	1-3/4"

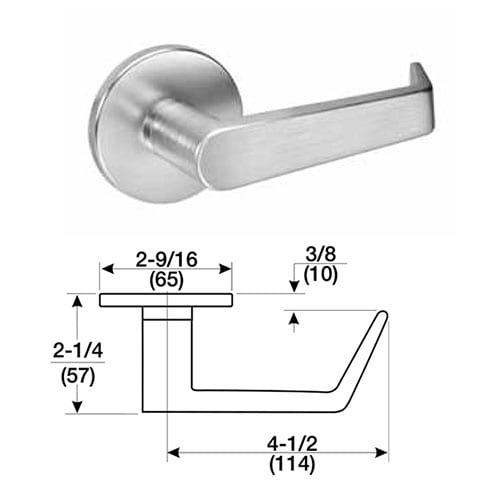

Lever Design	AUR (Augusta)
Warranty	10 Years
