Product Overview

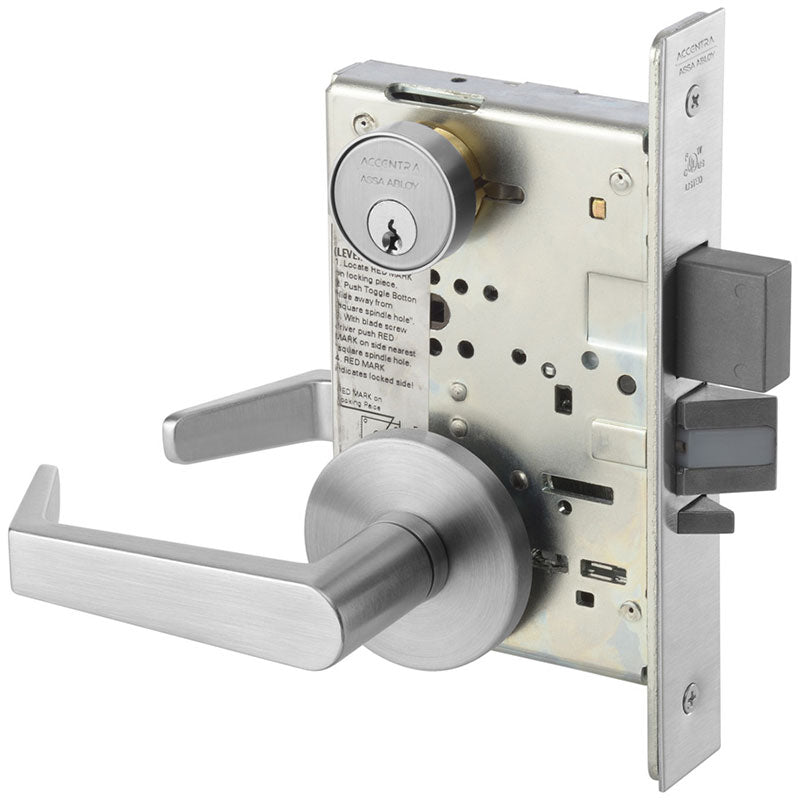

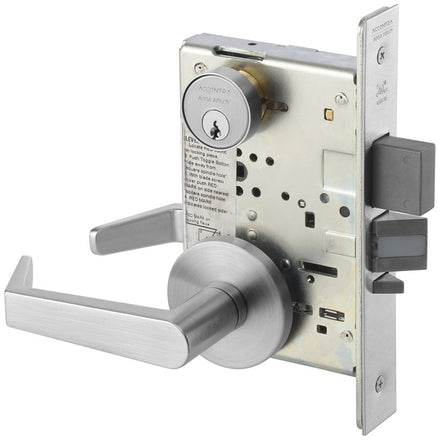

Accentra (formerly Yale) AUR8847FL ANSI/BHMA Grade 1 Certified Mortise Lock, Apartment Corridor/Entry Function, Sectional Augusta AUR Lever/Rose Trim
Accentra 8800 Series Mortise Locks are designed and manufactured for uncompromising strength and durability in a range of commercial applications.

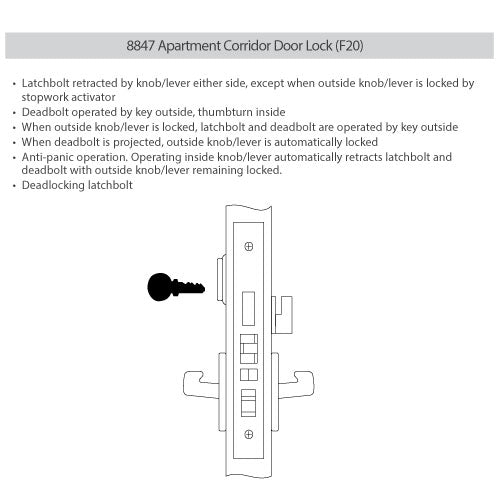

ANSI F20 – Apartment Entry – Latchbolt retracted by lever either side, except when outside lever is locked by stopwork activator. Deadbolt operated by key outside, thumbturn inside. When outside lever is locked, latchbolt and deadbolt are operated by key outside. When deadbolt is projected, outside lever is automatically locked. Anti-panic operation. Operating inside lever automatically retracts latchbolt and deadbolt with outside lever remaining locked. Deadlocking latchbolt.
Requires 2153 or 2553 1-1/8″ Mortise Cylinder w/ 2160 Cam
- ANSI/BHMA: Certified ANSI/BHMA A156.13, Series 1000, Operational Grade 1
- UL-cUL: UL/cUL fire rated up to 3 hours
- Windstorm: Certified (refer to local codes)
- Mechanism: Stainless steel
- Backset: 2-3/4″
- Latchbolt: 3/4″ stainless steel throw
- Door Thickness: 1-3/4″ standard
- Reversibility: Field reversible handing
| Brand | |
|---|---|
| Finishes |
626 Satin Chrome, 605 Bright Brass, 606 Satin Brass, 613e Dark Oxidized Satin Bronze equivalent, BSP Black Suede Powder Coat |
| Cylinder |
2153 (Para Keyway) or 2553 (Schlage C Keyway) 1-1/8" Mortise Cylinder w/ 2160 Cam |
| Lock Function |
Apartment Entry |
| ANSI Function |
F20 |
| Usage |
Heavy Duty |
| ANSI/BHMA Standard |
Certified ANSI/BHMA A156.13, Series 1000 |
| ADA Compliance |
Meets ADA requirements - A117.1 Accessibility Code |
| Fire-Rating |
UL and cUL Listed - up to 3 Hours |
| Handing |
Right hand is standard; Reversible in the field |
| Backset |
2-3/4" |
| Latchbolt |
3/4" throw, stainless steel one-piece anti-friction |
| Deadbolt |
Stainless steel, 1” throw |
| Strike |
4-7/8" Curved Lip Strike with a 1-1/4" lip length |
| Case |
wrought steel, zinc dichromated |
| Hubs |
3/8" solid steel, fine-blanked and heat treated for additional strength |
| Armored Front |
8" x 1-1/4" |
| Door Thickness |
1-3/4" |

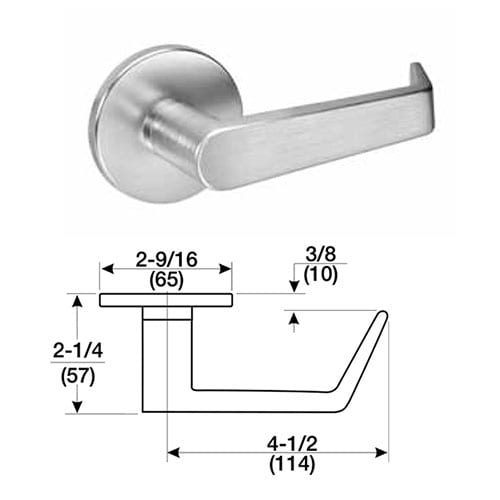

| Lever Design |
AUR (Augusta) |
| Warranty |
10 Years |
