Accentra (Formerly Yale) 5302LN AU Privacy, Bedroom or Bath Lever Lock

$196.31
Usually Ships:  1-2 Business Days
  • ANSI/BHMA Certified Grade 2
  • ADA compliant, 3-hour fire-rated
  • Bath/Privacy function, push button locking

Available Options:

Clear

Product Overview

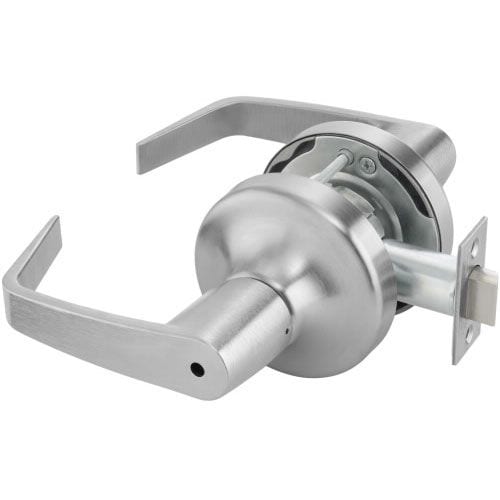

Accentra (formerly Yale) AU5302LN ANSI/BHMA Grade 2 Certified Cylindrical Lock, Privacy Function, Augusta Lever

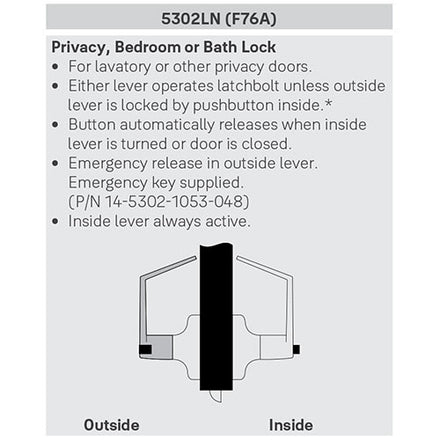

ANSI Function F76A – Keyless – For lavatory or other privacy doors. Either lever operates latchbolt unless outside lever is locked by pushbutton inside. Button automatically releases when inside lever is turned or door is closed. Emergency release in outside lever. Emergency key supplied. (P/N 14-5302-1053-048) Inside lever always active.

  • Designed to withstand everyday use and resist damage and vandalism
  • Free Wheeling lever mechanism prevents vandalism and reduces lock maintenance
  • Adjustable door thickness mechanism
  • Heavy duty torsion spring prevents lever sag
  • Thrubolts solidly through the door, providing greater strength and stability
  • ANSI/BHMA Grade 2 certified for long life and durability
  • ADA compliant for ease of accessibility

codes

Brand

Finishes

626 Satin Chrome

Lock Function

Privacy

Usage

Medium Duty

ANSI/BHMA Standard

Certified ANSI/BHMA A156.2, Series 4000 Grade 2

Latch

1/2" throw - 1-1/8" x 2-1/4" face

Backset

2-3/4"

Strike

4-7/8” x 1-1/4” ASA/ANSI strike with curved lip to meet ANSI A115.2 door frame preparation

Handing

Non-Handed

Lever Design

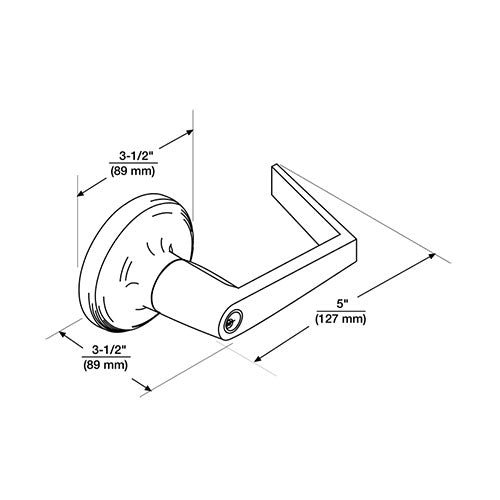

AU (Augusta)

Door Thickness

1-3/8" to 1-3/4"

Fire-Rating

UL-cUL fire rated up to 3 hours

ADA Compliance

Meets ADA requirements - A117.1 Accessibility Code

Warranty

5 Year
