Accentra (Formerly Yale)

Accentra (Formerly Yale) 1510(F) Traditional Surface Vertical Rod Exit Device

$1,974.22
This item ships FREE! Usually Ships:  20-30 Business Days
  • ANSI/BHMA Grade-1 Certified
  • Classic design for historic buildings
  • Exit only (trim sold separately)

Available Options:

Clear

Product Overview

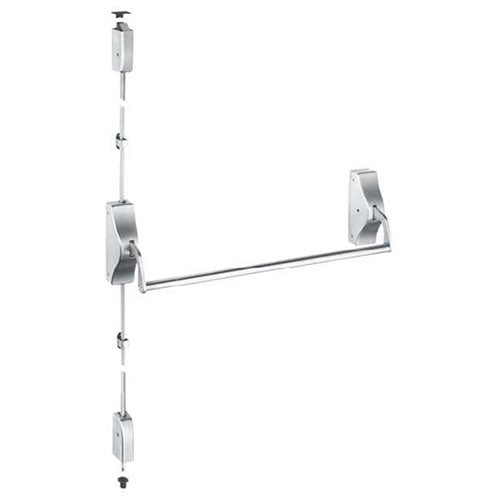

Accentra (formerly Yale) 1510(F) Traditional Cross Bar Type Panic Surface Vertical Rod Exit Device, 7ft Height, Exit Only

The 1510(F) is a traditional surface vertical rod exit device for any door where two-point latching is desired (inactive doors of pairs in particular).

Packed for 7'0" high (2.13m) openings with recommended template. Field cut rods or use rod extensions for other applications.

  • Exit Only (Accentra/Yale Exit Device Trim Sold Separately)
  • Standard door height 7' (213cm), with the device centerline at 39-5/16" (100cm) from floor. Optional heights up to 8' (fire) and 10' (panic) available by using rod extensions.
  • Great for retrofit applications: Classic design allows for upgrade in historic buildings, on single or pairs of doors
  • Certified ANSI/BHMA A156.3, Grade 1.
  • Positive action linkage on a deadlocking top pullman bolt
  • Simultaneous direct pull bottom deadbolt
  • When unlatched, device keeps both bolts retracted until door is shut
  • UL/cUL Listed: FVSR/FVSR7 - Panic hardware, GXHX/GXHX7 - Fire exit hardware (F) (8' x 8' pairs, 3 hr.)
  • ISO 9001: Designed and manufactured under a certified ISO 9001 quality system
  • Warranty: One year warranty. Trims carry a five-year warranty.
Brand

Length

36" (for 30" to 36" Doors), 48" (for 36" to 48" Doors)

Finishes

630 Satin Stainless Steel

ANSI/BHMA Standard

Certified ANSI/BHMA A156.3, Grade 1

Usage

Heavy Duty

Stile Type

Wide (Standard)

Device Type

Surface Rod Device

Includes Trim

No

Fire-Rating

1510: None - 1510F: 3 Hour Fire-Rated

Handing

Handed - Field Reversible

Minimum Stile Width

4-1/2"

Projections

5-5/8" active, 4-1/2" depressed

Latchbolt

Top: 3/4" (19mm) throw, pullman-type with automatic deadlatching Bottom: 5/8" (16mm) throw deadbolt, held retracted during door swing

Strike

Top: Roller type 791. Bottom: Flush mounted 790. 794 floor strike optional (threshold openings), 702 floor strike optional (BPL devices).

Dogging Feature

Hex key dogging standard on non-fired-rated devices

Fasteners

Machine screws and wood door fasteners standard for panic hardware. Sex nuts and bolts supplied standard for fire exit hardware

Door Applications

1-3/4" Metal, wood or composite doors

Door Height

Up to 7'0" Standard (extension top rod for 8'0" doors optional)

Warranty

1 Year
