ABH

ABH 6000 Series Push/Pull Hospital Latch

$170.06
Usually Ships:  3-5 Business Days
  • Cylindrical latch application - Passage function
  • Meets ADA requirements, UL Listed
  • US32D Satin Stainless Steel finish

Available Options:

Clear

Product Overview

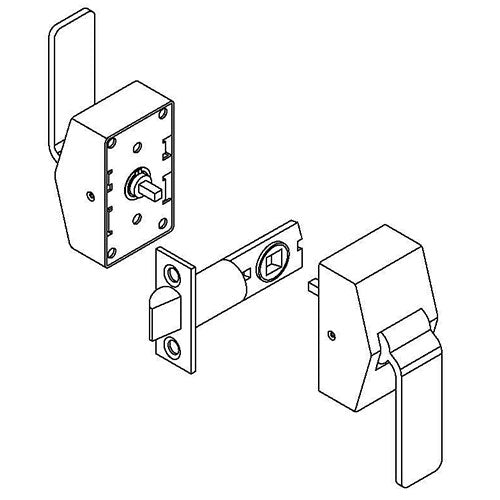

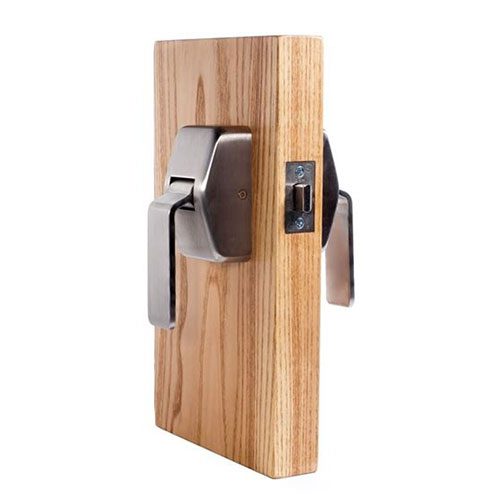

ABH 6000 Series Push/Pull Hospital Latch

Cylindrical latch application solution for commercial and institutional settings

  • Cylindrical latch application - passage function
  • 1-3/4" standard door thickness
  • Meets ADA requirements
  • Trim is mounted using four thru-bolts for maximum stability
  • One continuous spring provides a smoother operation and an extended life for the unit
  • Trim can be mounted vertical or horizontal (with handles pointing toward hinge edge of door)
  • Handles can be mounted up or down by simply rotating trim 180°
  • UL Listed in U.S.A. and Canada for use on door fire rated 90 minutes or less, up to 4'0" x 8'0"
  • 1/2" Latch Bolt Throw

Models: 602A, 602T, 603A, 603T, 605A, 605T

made-in-usa

Brand

Finishes

US32D (630) Satin Stainless Steel

Backset

2-3/4", 5", 3-3/4"

Strike

4-7/8" ASA Strike, 2-3/4" T-Strike

Function

Passage

Latch

1/2" throw - 1-1/8" x 2-1/4" face

Handing

Non-Handed

Door Thickness

1-3/4"

Buy American Act Compliance

Meets Buy American Act - Made in USA
