GLS7700-32D

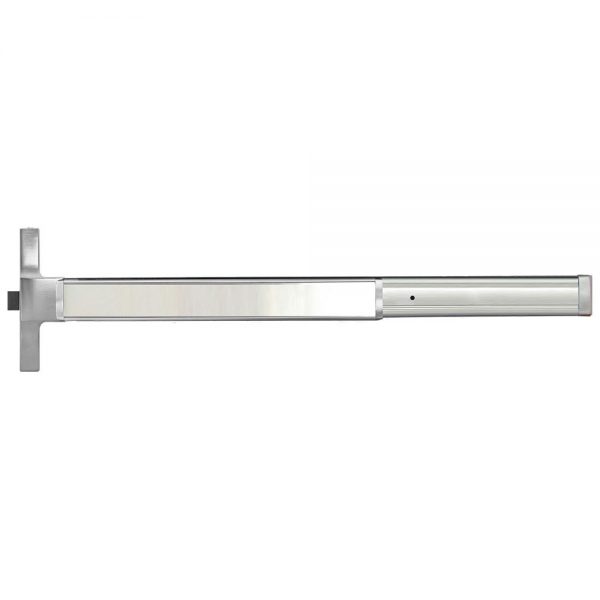

Cal-Royal GLS7700/FGLS7700 Narrow Stile Rim Exit Device

Usually Ships: 2-3 Business Days
  • Heavy Duty, ANSI/BHMA Grade-1 Certified
  • Non-handed and easily reversible
  • Exit Only (trim sold separately)

Available Options:

Product Overview

Cal-Royal GLS7700 and FGLS7700 Narrow Stile Grade-1 Rim Exit Device, Exit Only

The GLS7700 Series narrow stile rim exit device offers uncompromising security and safety and is used in institutions, schools, universities, and commercial buildings where heavy-duty, reliable operation is a requirement.

  • Exit Only – (Outside Trim Sold Separately)
  • For use with single doors or double doors with mullions
  • Non-handed and easily reversible
  • GLS7700EO36 = 34-9/64″ actual length, for 30″ to 36″ door widths
  • GLS7720EO48 = 45-29/32″ actual length, for 36″ to 48″ door widths
  • F prefix = Fire exit hardware for all types 4′ x 8′ single doors and 8′ x 8′ double doors for up to 3-hour fire labeled installations
  • UL Listed for Panic and ULC10C, UBC 7-2-1997 codes
Brand

Finishes

US10B (613) Oil Rubbed Bronze, US32D (630) Satin Stainless Steel
Length

3'0" (2'6" to 3'0" Doors), 4'0" (3'4" to 4'0" Doors)
Stile Type

Narrow
Minimum Stile Width

1-3/4"
Handing

Non Handed – Completely Reversible
ANSI Grade

ANSI Grade 1
ANSI/BHMA Standard

ANSI A156.3, Grade 1
Usage

Heavy Duty
Fire Rating

7700EO: Non-Rated – F7700EO: UL Listed 3 Hour Rated
Dogging Feature

Hex key dogging standard on non-fired-rated devices
Latchbolt

Stainless Steel 3/4" throw
Strike

246 packed standard
Warranty

Limited Lifetime Warranty
