Product Overview

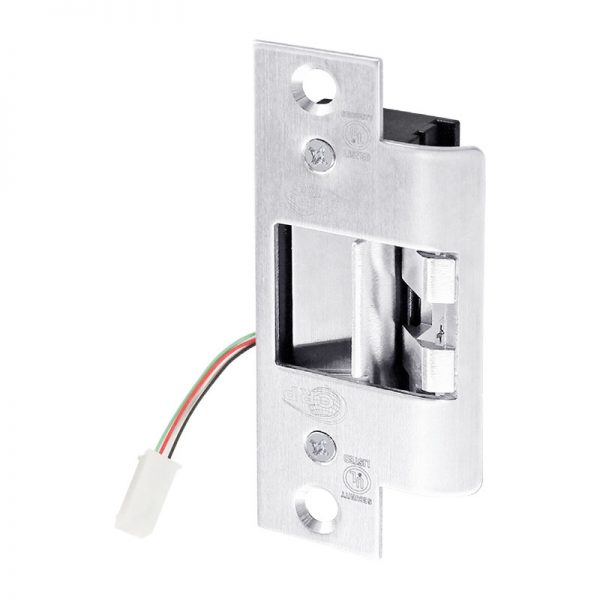

Cal-Royal ES1520 Electric Strike for Cylindrical Locksets, Field Selectable 12/24 VDC, Field Selectable Fail-Safe/Fail-Secure, Satin Stainless Steel
FEATURES:
- Designed for use with Cylindrical Locksets
- For Hollow Metal Frame Applications
- No frame cutting is required - Special ramp design allows the latchbolt to exit from an unmodified frame
- Non-Handed, Fully Reversible
- Field Reversible for Fail Safe or Fail Secure Operation
- Static Strength: 1500 lbs (680 kg)
- Dynamic Strength: 70 ft-lbs
- Endurance Rating: 250,000 Cycles (UL Tested), 1,000,000 Cycles (Factory Tested, Exceeds Grade 1 Standards)
SPECIFICATIONS:
- Voltage: Dual 12/24VDC
- Current Draw: 300mA @ 12VDC, 150mA @ 24VDC
- Latch Throw: 9/16” (15mm)

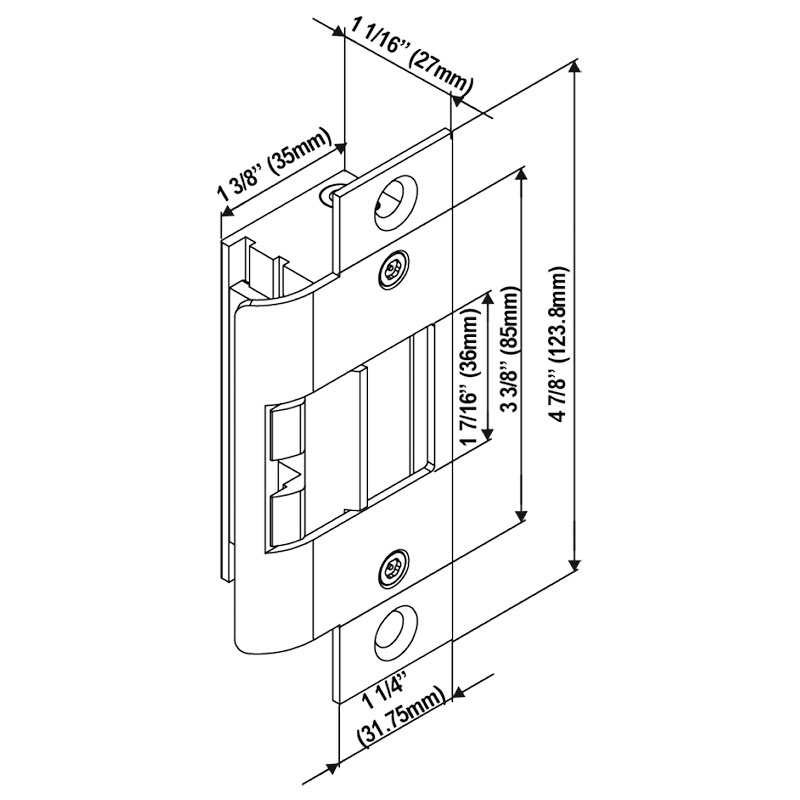

- Keeper Width: 1 7/16” (36mm)
- Mount: Mortise
- Body Construction: Zinc Alloy
APPROVALS AND LISTINGS:
- UL1034 Burglary-Resistant Listed: BP21351
- UL294 Access Control System Listed: BP21351
| Brand | |
|---|---|
| Finishes |
US32D (630) Satin Stainless Steel |
| Electrical |
Voltage: Dual 12/24VDC - Current Draw: 300mA @ 12VDC, 150mA @ 24VDC |
| Usage |
Standard Duty |
| Lock Type Compatibility |
Cylindrical Lock |
| Part Type |
Complete Electric Strike |
