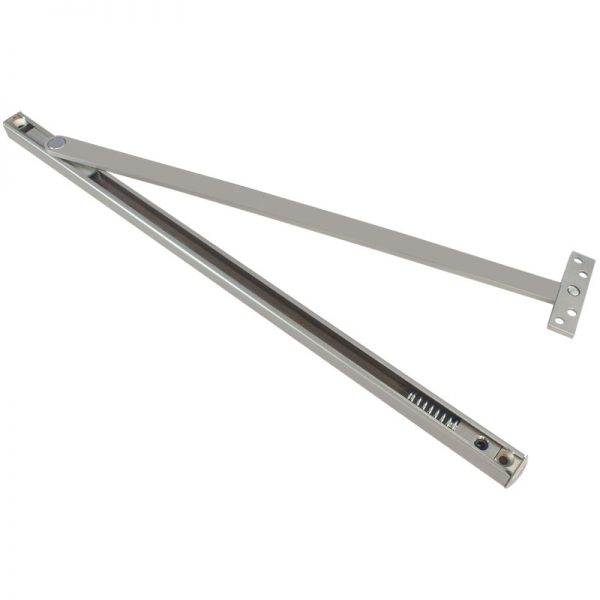

Cal-Royal CON770 Series Concealed Mount Overhead Door Holders and Stops

Usually Ships: 2-3 Business Days

Concealed mount
Slide track design
Satin stainless steel finish

Available Options:

Model

Clear

Quantity:

Cal-Royal CON770 Series Medium-Duty Concealed Mount Overhead Door Holders and Stops

Application

Interior or exterior doors
Single or double-acting
Non-handed
Recommended for moderate traffic, medium weight doors

Features

Medium-duty concealed, Slide track design
Degree of the opening is fully adjustable and can be adapted to changing needs
Heavy shock absorber spring provides 5-7° compression before dead-stop
Stop or hold-open function
Complete screw packet with thru-bolts for the door, wood and machine screws for frame
Durable slider cam
110° maximum opening
1-3/4″ minimum door thickness

Compliance

ANSI A156.8 UL Listed as STOP Function

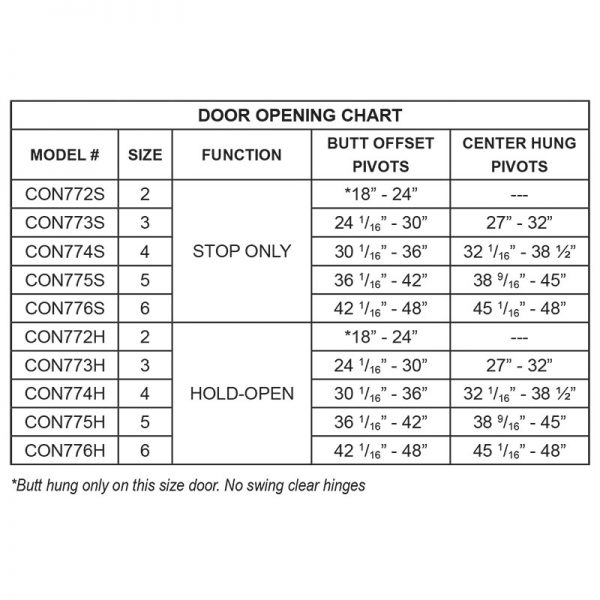

Models: CON772S-US32D, CON774S-US32D, CON774H-US32D, CON776S-US32D

Brand	Cal-Royal
Finishes	US32D (630) Satin Stainless Steel
Mouting Style	Concealed Mount
Handing	Non-Handed
Usage	Medium Duty
Fire Rating	UL Listed up to 3 hours (stop function only)
