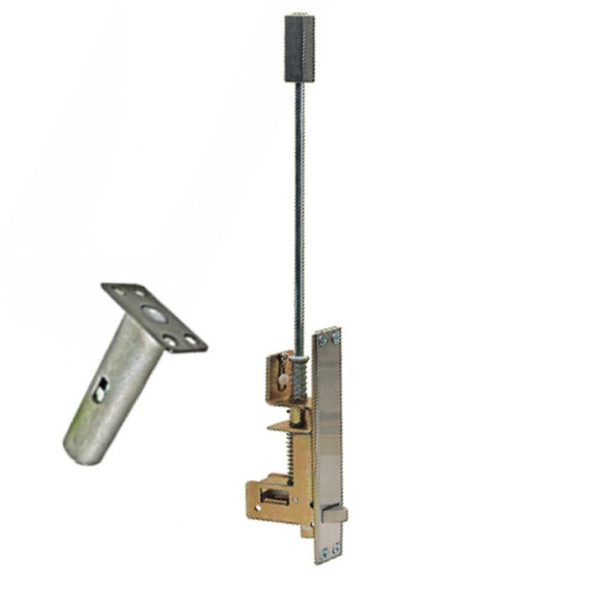

Cal-Royal AUXAUTOFLM1 Automatic Flush Bolt with Bottom Auxiliary Fire Latch for Metal Doors

Cal-Royal AUXAUTOFLM1 Automatic Flush Bolt Set, 1 Auto Flush Bolt (Top) and 1 Auxiliary Fire Latch (Bottom) for Metal Doors

• 1 Set Includes, 1 Auto Flush Bolt (Top) and 1 Auxiliary Fire Latch (Bottom)
• For fire-rated metal doors labeled A, B, C, D & E up to 4′ wide x 9′ high

Auto Flush bolt:
Face Plate: 1” x 6 3 / 4 ”
Bolt Head: 1 /2 ” Square
Bolt Throw: 3 /4 ”
Fastener: #8 x 1”
Material: Steel

Auxiliary Latch:
Face Plate: 1” x 1 3 / 4 ”
Body: 7 / 8” bore x 3 1 /4 ” Deep
