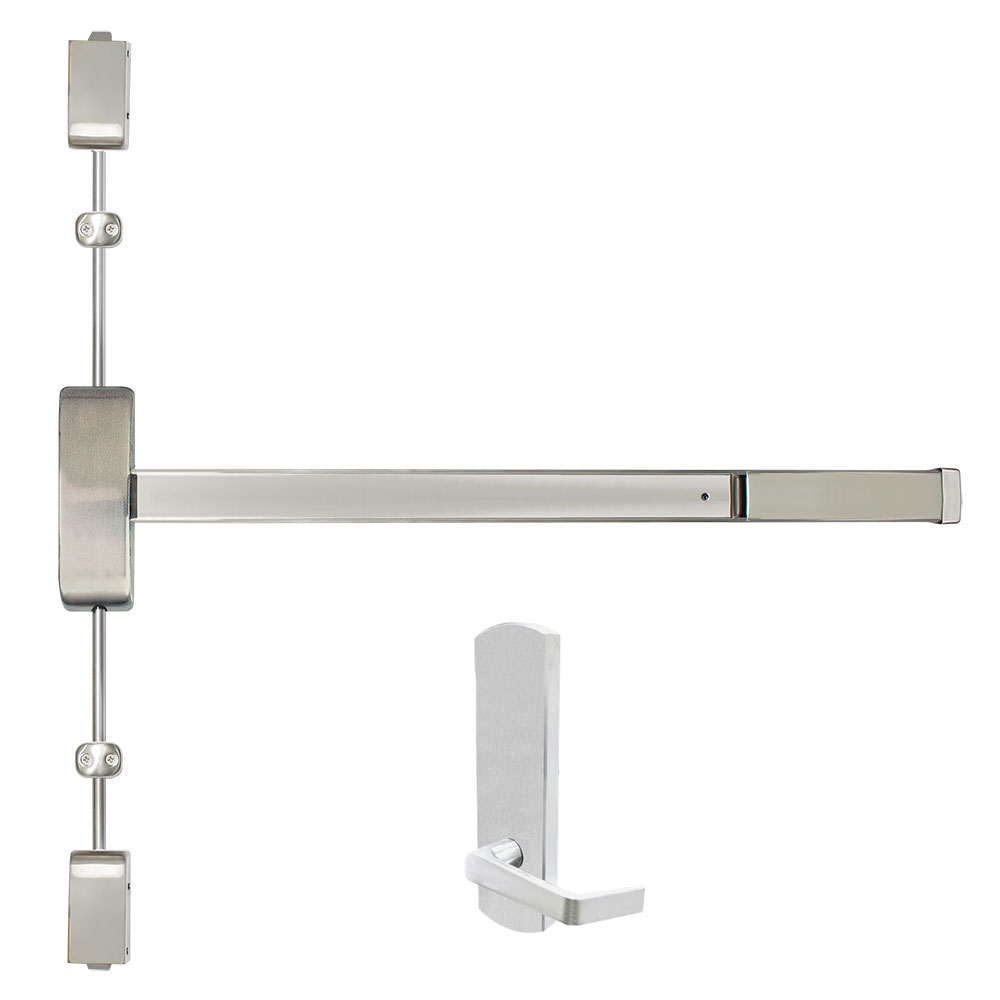

Cal-Royal A9860V x NESC9830 Surface Vertical Rod Exit Device with Escutcheon Passage Lever Trim

Cal-Royal A9860V/AF9860V x NESC9830 Surface Vertical Rod Exit Device with Escutcheon Passage Lever Trim, Heavy Duty Grade-1

The 9800 Series offers uncompromising security and safety in single and double fire exit doors. For use in institutions, schools, universities, commercial buildings where heavy-duty reliable operation is a requirement.

• ANSI Function 14 – Trim always operable and free
• For Doors – 1 ¾” thick standard. 3 ¾” minimum stile width for single door application. 3 ½” minimum stile width required for double door application.
• BHMA/ANSI A156.3, Grade-1 Certified
• Retrofits Sargent 8800 Series
• Conforms & Meets ADA Regulations
• Americans with Disability Act (ADA) Compliant, 5 lbs. opening force
• UL and ULC Listed – 9860 Series for panic. F9860 Series for fire exit hardware for all types of 8’ x 8’ double doors for up to 3-hour fire labeled installations. Conforms to standards UL10C and UBC 7-2-1997 codes
• Uncompromising security and safety in single and double fire exit doors
• Chassis-mounted unit construction
• Non-handed and easily reversible

NESC9830 Lever Trim

• 2-3/4″ width x 10-1/4″ length – Lever length: 4-3/4″
• Fits and covers 2-1/8″ 161 cutout
• Double heavy-duty spring support to prevent sagging and enhance operation
• Grade 1, thru-bolted design.
• Non-handed design – Easily field reversible
• Hardened steel heavy duty tailpiece
