Cal-Royal A9800EO/AF9800 Panic Rim Exit Device

Usually Ships: 2-3 Business Days
  • Heavy Duty, ANSI/BHMA Grade-1 Certified
  • Non-handed and easily reversible
  • Exit only (trim sold separately)

Available Options:

Clear

Cal-Royal A9800 & AF9800 ADA Series Grade-1 Rim Exit Device, Exit Only

The 9800 Series offers uncompromising security and safety in single and double fire exit doors. For use in institutions, schools, universities, commercial buildings where heavy-duty reliable operation is a requirement.

  • Exit Only – (Outside Trim Sold Separately)
  • Non-handed and easily reversible
  • UL and ULC Listed: 9800 Series for panic. F9800 Series for fire exit hardware for all types of 4’ x 8’ single doors and 8’ x 8’ double doors for up to 3-hour fire labeled installations, conforms to standards UL10C and UBC 7-2-1997 codes
  • Conforms & Meets ADA Regulations
  • Americans with Disability Act (ADA) Compliant, 5 lbs. opening force
  • Retrofits Sargent 8800 Series using 9800 escutcheon trim
Brand

Finishes

L1 Black, US3 (605) Bright Brass, US4 (606) Satin Brass, US10B (613) Oil Rubbed Bronze, US32D (630) Satin Stainless Steel

Length

24" (For 22” to 24” doors), 32" (For 26” to 32” doors), 36" (For 30” to 36” doors), 48" (For 37” to 48” doors)

Usage

Heavy Duty

ANSI/BHMA Standard

Certified ANSI/BHMA A156.3, Grade 1

Fire Rating

9800EO: Non-Rated – F9800: UL Listed 3 Hour Rated

Dogging Feature

Hex key dogging standard on non-fired-rated devices

Latchbolt

Stainless steel 3/4” throw with anti-pick feature

Strike

239 packed standard

Projections

2-1/2" active, 1-3/4" dogged

Door Thickness

1-3/4"

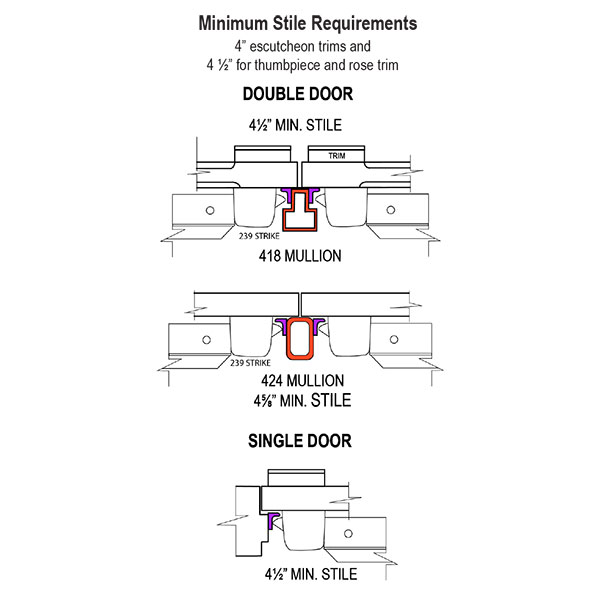

Stile Type

Wide (Standard)

Handing

Non Handed – Completely Reversible

Warranty

Limited Lifetime Warranty
