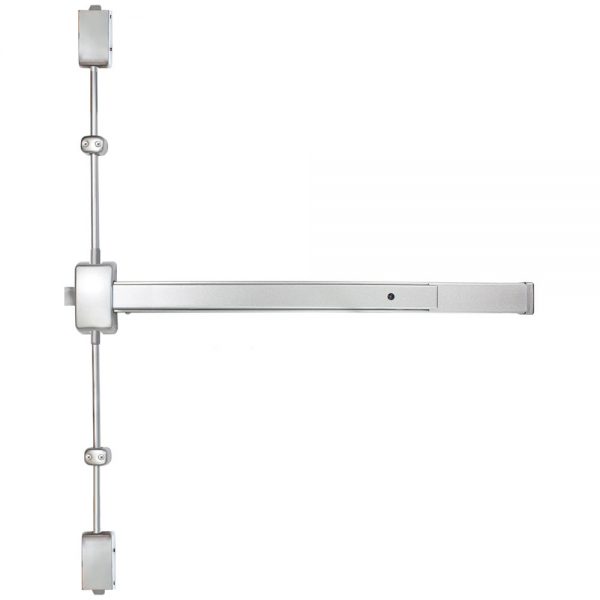

Cal-Royal 22-3PT Surface Vertical Rod, Three-Point Latching Exit Device

Cal-Royal 22-3PT and F22-3PT Grade-1 Surface Vertical Rod, Three-Point Latching Exit Device, Exit Only, ALUM Painted Aluminum Finish

Three-point latching device for all types of single or double doors

• Exit Only – (Outside Trim Sold Separately)
• For Doors – 1 ¾” – 2 ¼” thick. 4-21/64” minimum Stile Width required for single and double door applications. Lever and escutcheon trims available.
• Top & Bottom Chassis – Steel material for Panic and Fire Grade.
• Cover – Aluminum, Zinc, Steel or Stainless Steel S304 material. Covers stock hollow metal doors with 161 cut out.
• Mounting – Furnished with wood and machine screws. Thru-Bolts are included and standard packaging on fire rated devices.
• End Cap – Steel or Stainless Steel S304 construction
• End Bracket – Steel material
• Hand – Handed. Easily field reversible. Specify at time of order LHR, RHR for convenience
• Latch Bolt – Stainless Steel S304 material; Top and Bottom Bolt: ⅝” throw, Rim Bolt: ¾” throw
• Rod Guide – Steel or Stainless Steel S304
• ANSI Standard – A156.3, Grade 1
• Rail Assembly – Heavy gauge extruded Steel or Stainless Steel S304 body and push pad
• Strike – (610) Roller Rim Strike, (620) Top Strike, (233) Bottom Strike, (221) Handicap Bottom Strike
• Dogging Feature – Allen-type key furnished standard on non-fire labeled devices
• UL and ULC Listed – 22-3PT Series for panic. F22-3PT Series for fire exit hardware for all types of 8’ x 8’ double doors for up to 3 hour fire labeled installations. Conforms to standards UL10C and UBC 7-2-1997 codes
