Best-HD8016-689
DS
Best-HD8016-689
DS

Best HD8016 DS Door Closer with Heavy Duty Parallel Arm with Stop

Usually Ships: 1-2 Business Days
  • Heavy Duty, BHMA/ANSI Certified Grade-1
  • Includes heavy-duty parallel arm with stop
  • Parallel arm mount

Available Options:

Product Overview

Best HD8016 DS Grade 1 Heavy Duty Surface Door Closer, Adjustable Size 1-6, Heavy Duty Parallel Arm with Dead Stop, Non-handed

The HD8000 Heavy-Duty door closer provides maximum protection against fatigue and abrasion. This Grade 1 certified closer is built to meet the requirements of ANSI A156.4, comply with barrier-free requirements, and can be used with a wide array of doors and frames.

Versatile, durable, and reliable, featuring modern styling for institutional or high-traffic commercial applications.

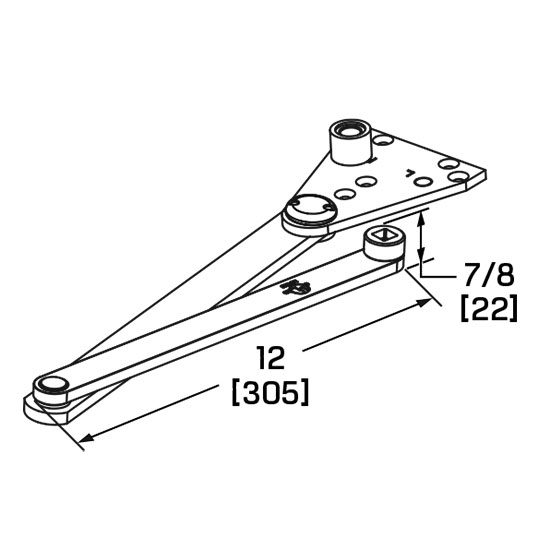

Heavy-duty parallel arm with integral cushioned opening function. Units can be installed to achieve stop at 85°, 90°, 100°, and 110°. Maximum opening is 110° (conditions permitting). Arm is non-handed.

  • DS = Heavy-duty parallel arm with stop
  • Housed in corrosion-resistant aluminum with a hardened pinion/piston providing toughness and high-strength
  • The arm hub is made from forged steel
  • Standard back-check protects the door and frame while controlling the door from abrupt opening
  • ANSI/BHMA A156.4 Grade 1 certified
  • UL and CUL listed
  • Meets ANSI/BHMA A117.1 and ADA for barrier-free accessibility

Applications

  • Education, K-12 & Universities
  • Healthcare facilities
  • Government offices & facilities
  • Transportation/Airports
  • Other commercial applications

codes

Brand

Finishes

689 Aluminum (Powder Coated), 693 Black (Powder Coated), 695 Dark Bronze (Powder Coated)
Usage

Heavy Duty
Templating (Hole Pattern)

2-1/2" x 9"
Mounting Options

Parallel Arm (Push Side)
ANSI/BHMA Standard

ANSI/BHMA Grade 1 156.4 standards
Fire Rating

UL and cUL Listed – up to 3 Hours
ADA Compliance

Meets ADA requirements – A117.1 Accessibility Code
Fasteners

SNDTPK – Standard fasteners include separate self-drilling and self-tapping and sex nuts for 1-3/4" thick doors and machine screws
Body Construction

Cast Aluminum Body
Cover

Full Cover
Spring Size

Adjustable Spring Size 1-6
Handing

Non-Handed
Warranty

30 Years
