Anemostat

Anemostat LoPro Vision Lite Kit Pack with 1/4″ Clear Tempered Glass

$114.08
Usually Ships:  10-20 Business Days
  • Complete Lite Kit = Frame, Glass & Glazing Tape
  • Includes 1/4″ Clear Tempered – CAT II Impact-Rated (Safety Glass)
  • For use with 1-3/4″ thick steel or wood doors

Available Options:

Clear

Product Overview

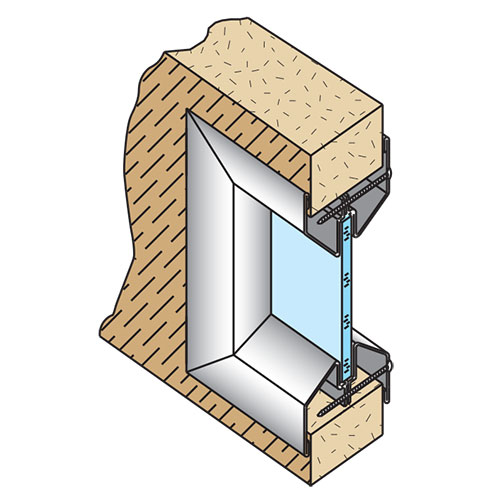

Anemostat LoPro Complete Low Profile Lite Kit for 1-3/4" Thick Doors with 1/4″ Thick Clear Tempered Glass and Glazing Tape

  • Mitered and welded corners with countersunk mounting holes
  • Order size equal to cutout size – Glass size is 1″ under, Visible glass is 2″ under
  • Includes 1/4″ Clear Tempered – CAT II Impact-Rated (Safety Glass) – Heat-treated clear safety glass that breaks into small particles
  • Tempered Glass – Four Times Stronger Than Annealed Glass

Tempered glass is recommended for all non-fire-rated doors

All lite kits are carefully packaged to ensure safe delivery. Due to the weight and/or fragile nature of this product, a handling/package fee will be added upon checkout. The fee varies depending on the shipping destination. See our shipping info page for more details.

Brand

Finishes

GPZ - Gray Primer, CAB - California Bronze

Order Size

12" x 12", 5" x 35", 6" x 27", 7" x 22", 8" x 18", 8" x 32", 24" x 24", 24" x 30", 24" x 32", 24" x 36"

Glass Type

Clear Tempered Glass

Glass Thickness

1/4"

Frame Profile

Low

Frame Construction

20 Gauge Cold Rolled Steel

Frame Fasteners

#8 x 1" Flathead Phillips SMS - Included

Glass Appearance

Clear

Glass Light Transmission

Approx. 86%

Glass Impact Safety Rating

ANSI Z97.1, Class A; and CPSC 16 CFR 1201 Category II

Glass Fire-Rating

None

Door Thickness

1-3/4"
