Product Overview

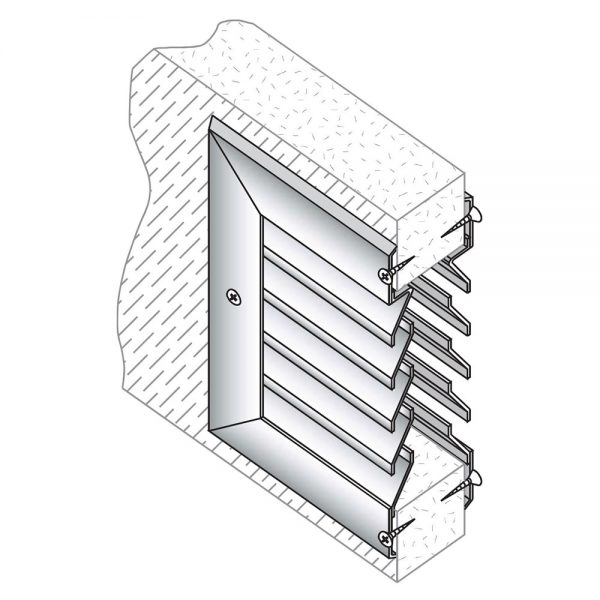

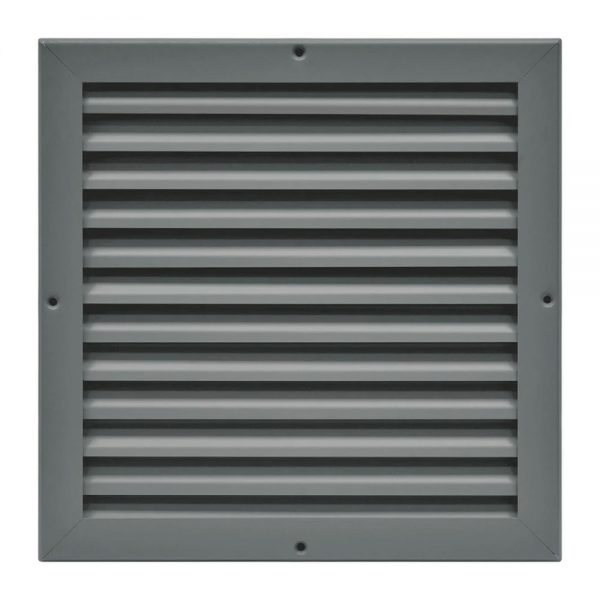

Anemostat/NGP FDLS Inverted Split Y No Vision Door Louver, Gray Primer Powder Coat Finish
Louvered doors help ventilate rooms when closed while still providing privacy and security.
- For 1-1/8″ and over Thick Doors
- 18 Ga. Cold Rolled Steel
- Mitered and Welded Corners
- Countersunk Mounting Screw-Holes
- #8 X 3/4″ Phillips Head SMS
- Free Area 50%
- Gray Primer (GPZ) Powder Coat Finish
| Brand | |
|---|---|
| Finishes | GPZ – Gray Primer |
| Size | 12" x 12", 12" x 24", 12" x 60", 16" x 10", 18" x 12", 18" x 18", 18" x 24", 18" x 56", 18" x 60", 18" x 64", 20" x 10", 24" x 12", 24" x 18", 24" x 24", 24" x 56", 24" x 60", 24" x 64", 24" x 66", 24" x 72", 30" x 24", 30" x 60", 30" x 64", 36" x 24", 36" x 72" |
| Material | Cold Rolled Steel |

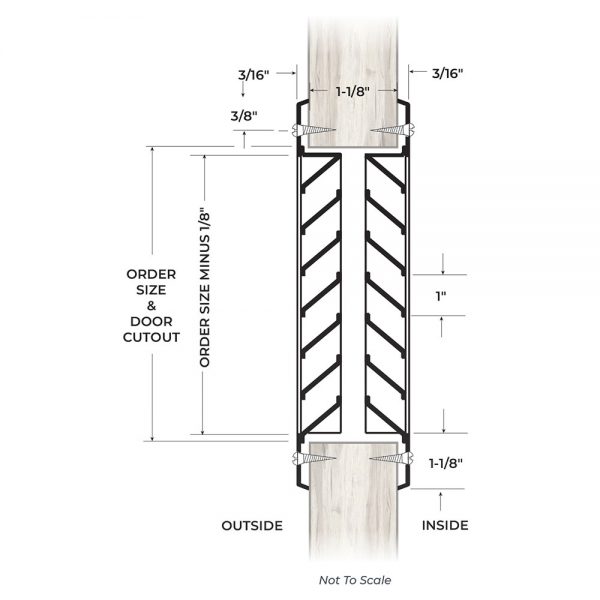

| Door Thickness | 1-1/8" and Over |
| Free Flow Area | 50% Free Area |
| Fasteners | #8 x 3/4" Flathead Phillips SMS – Included |
| Fire Rating | None |
| Warranty | 5 Year |
| Buy American Act Compliance | Meets Buy Amercian Act – Made in USA |
