ALREX

ALREX AXP-C Hydraulic Door Closer Hinge, 4.5" Height

$134.49
Usually Ships:  2-3 Business Days
  • Contains all the features of a door closer
  • Closing and latching speed control and power adjustment
  • UL 10C 3-hour fire-rated (non hold open model)

Available Options:

Clear

Product Overview

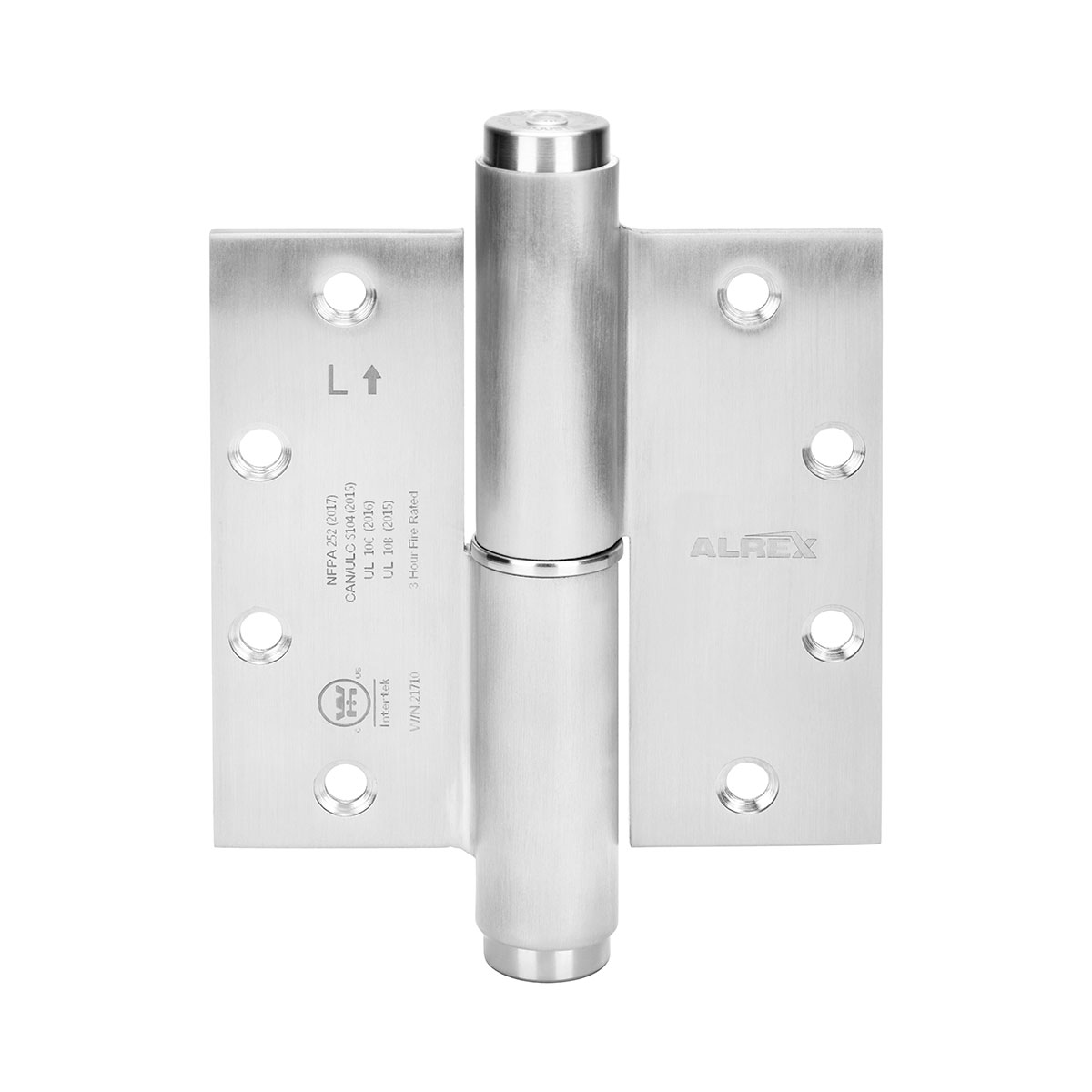

ALREX PRO AXP-C Hydraulic Door Closer Hinge, 4-1/2" Height, Full Mortise, Square Corner

The ALREX PRO Hydraulic Door-Closer Hinge redefines door control, blending hydraulic precision with spring-hinge reliability. Built for demanding environments, its stainless-steel design ensures smooth, code-compliant performance while preventing disruptive slams—now with UL 10C 3-hour fire-rated certification for commercial use. Hold Open available for non-fire-rated openings.

Key Features

  • Intelligent Speed Control: Adjustable hydraulic tension ensures smooth closing, preventing abrupt closures even in high-traffic areas
  • 5-Year Warranty: Confidence in quality and performance
  • UL 10C Fire Compliance: 3-hour fire-rated protection meets strict commercial building codes (NFPA 80/ADA)
  • Heavy-Duty Construction: 304 stainless steel body withstands 1,000,000+ test cycles
  • Patent #10633905: Innovative engineering backed by patented technology
  • Positive Latching Mechanism: Secures doors firmly into frames
  • Architectural-Grade Aesthetics: Slim profile integrates seamlessly with modern door designs

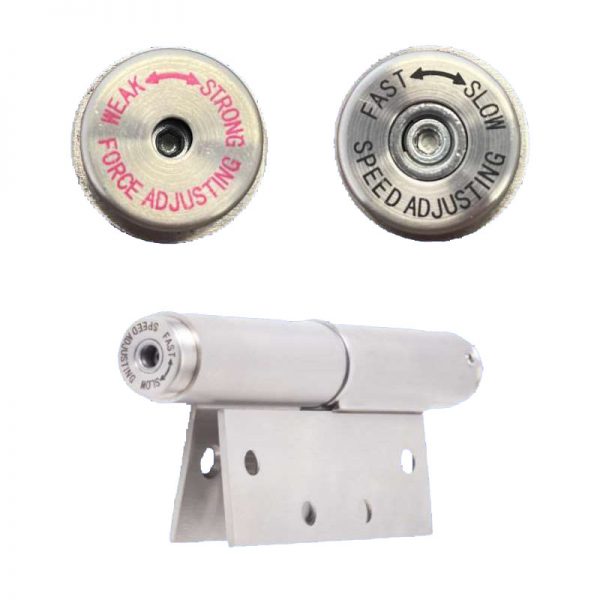

Adjustability

  • Spring tension (closing sweep speed) can be adjusted with the included tool on the top of the hinge
  • Hydraulic tension (latch strength) can be adjusted with the included tool at the bottom of the hinge

Functionality

  • Provides adjustable closing sweep and latch speed from 175 degrees
  • Hold-open option provides hold-open between 85 and 135 degrees with adjustable closing and latching

Applications

  • Medical
  • Arch Doors
  • Custom Applications / OEM
  • Transom Doors
  • Hospitality
  • Multi-Family
  • Gates
Brand

Finishes

US1D/800 Black Powder Coat, 630 Satin Stainless Steel

Fire-Rating

3 Hour Fire-Rated (Non Hold Open Models Only)

ADA Compliance

ADA listed as meeting requirements of 5 lb maximum opening force

Size

4.5"

Gauge

0 .134

Material

304 Stainless Steel

Handing

Handed – LH, RH

Fasteners

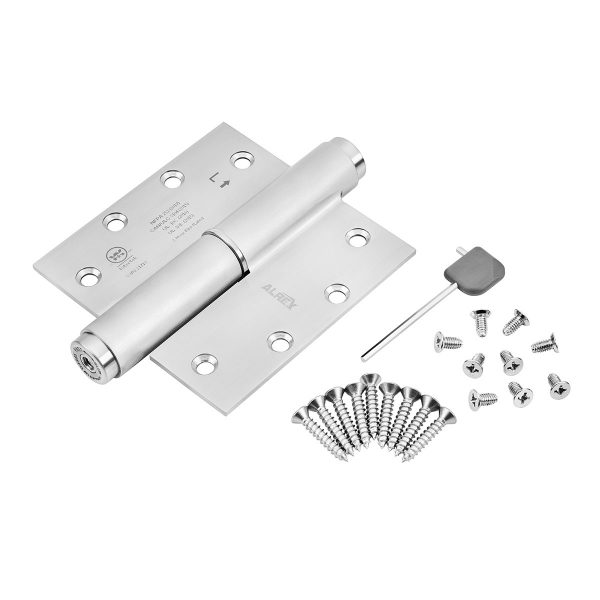

Wood & Metal Fasteners included: #12 x 1-1/4" / 12-24 x 1/2"

Temperature Range

-40°F to 212°F

ANSI/BHMA Standard

ANSI BHMA 156.17 Certified

Warranty

5 Year
