Air Louvers 800A1 Louver with Framed Fiberglass Insect Screen

Usually Ships: 20-30 Business Days
  • 18-Gauge Steel Frame w/ 20-Gauge Y Blades
  • Includes Framed Fiberglass Mesh Insect Screen
  • Self-Attaching, Vandal-Proof Design

Available Options:


Steel Y blade louver with framed fiberglass insect screen

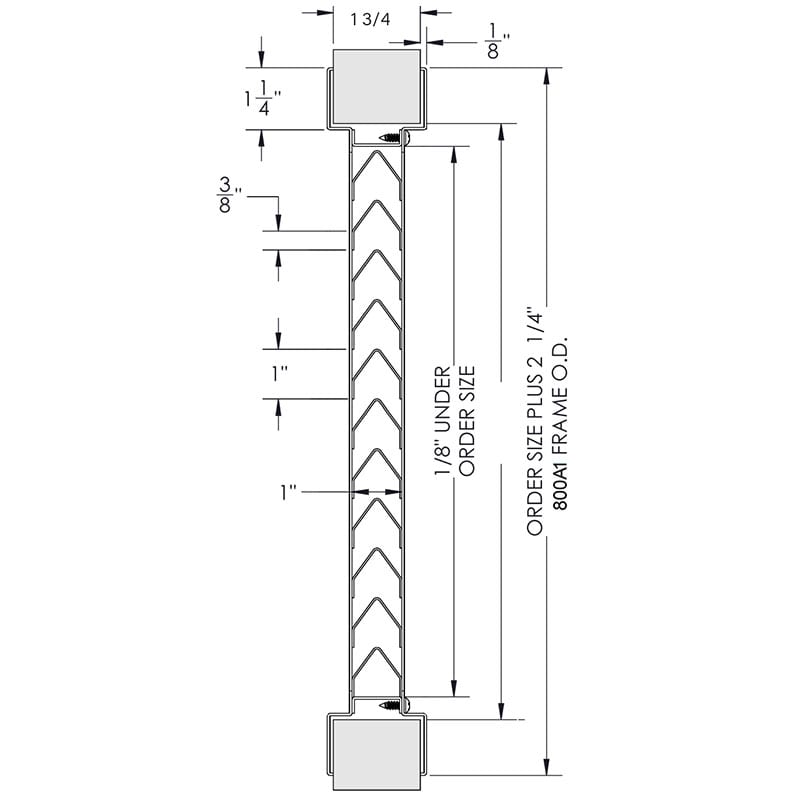

800A1 Frame: Self-attaching frame with 1-1/4″ trim, mitered and welded corners. Screws fasten through frame into louver core, leaving corridor side of frame free of fasteners.

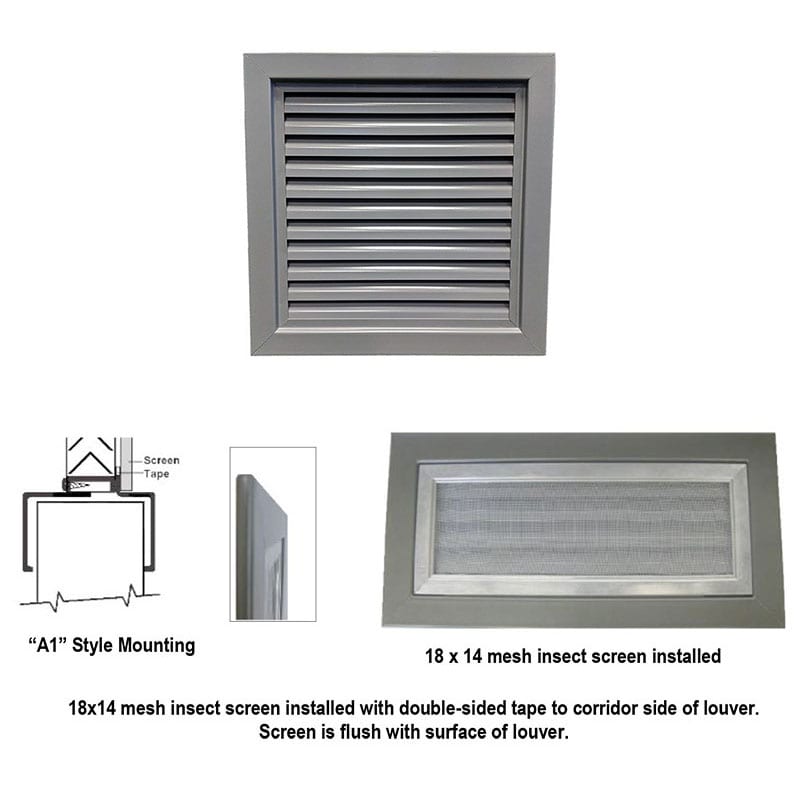

  • Includes framed fiberglass insect screen – Screen is flush with surface of louver
  • Reverse “Y” blades are frame supported at 1″ increments, with blocked vision design
  • Self-attaching, vandal-proof design
  • Single side mounting for non-corridor exposure with fastening screws included
  • Designed for use with 1-3/4″ doors only
  • Order size is equal to door cutout size





Gray (G), Mineral Bronze (B)


12" x 12", 18" x 12", 18" x 18", 18" x 60", 24" x 12", 24" x 24", 24" x 60"

Door Thickness


Free Flow Area

50% Free Area


Cold Rolled Steel


Phillips head screws #8 x 3/4" – Included

Fire Rating


Buy American Act Compliance

Meets Buy Amercian Act – Made in USA


5 Year
