Product Overview
Accentra (formerly Yale) YPL Series Grade-1 Cylindrical Lock with Status Indicator, 42 Privacy Function, Emergency Key/Tool Override
The ASSA ABLOY ACCENTRA® YPL Series cylindrical lock with status indicators provides enhanced privacy at a glance with it’s bold green and red status symbols. This cylindrical lock is the ideal choice for a wide variety of commercial applications where consistent quality, ease of use and installation are required.
The cylindrical lock indicator visually displays door status; whether the door is locked or unlocked, thus eliminating potentially embarrassing situations and providing peace of mind.
YPL02 locks are provided standard with a visual display that shows red with a closed shackle padlock for locked and green with an open shackle padlock for unlocked. The padlock icons are positioned in a manner that allows for the locks to be non-handed.

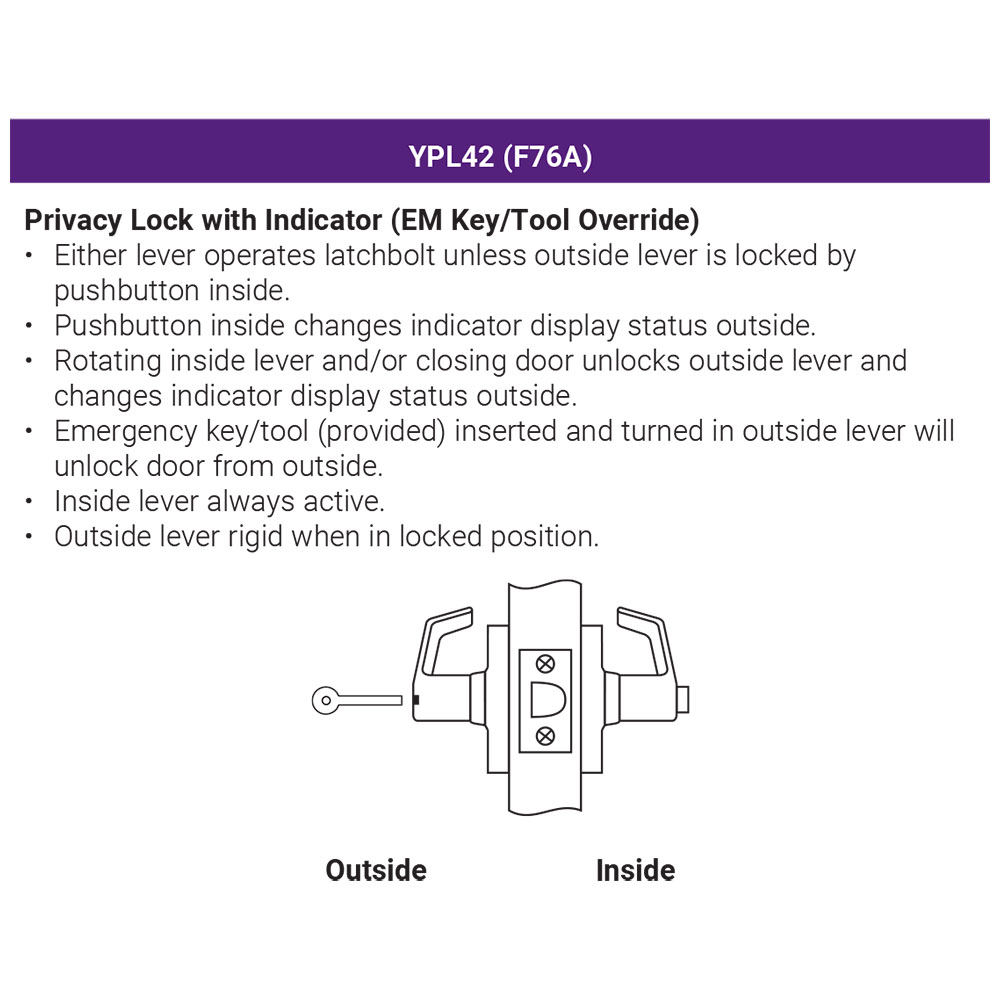

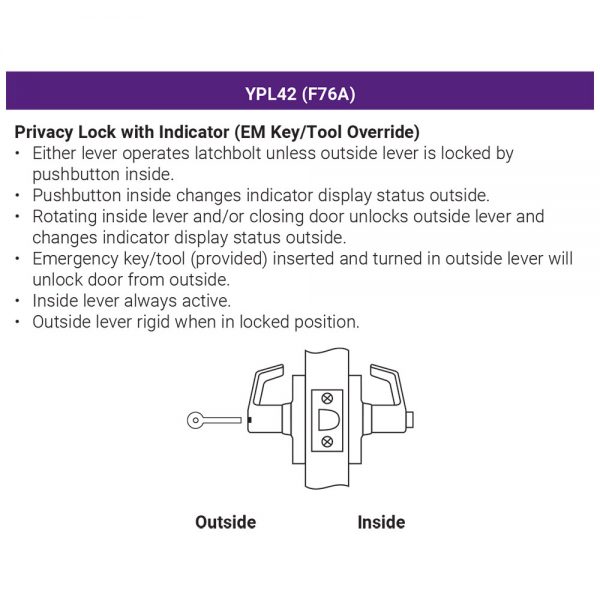

YPL42 (F76A) Privacy Bath/Bedroom (EM Key/Tool Override)
- Either lever operates latchbolt unless outside lever is locked by pushbutton inside.
- Pushbutton inside changes indicator display status outside.
- Rotating inside lever and/or closing door unlocks outside lever and changes indicator display status outside.
- Emergency key/tool (provided) inserted and turned in outside lever will unlock door from outside.
- Inside lever always active.
- Outside lever rigid when in locked position.
Features
- Red or Green window display with padlock icon for visual door status
- Cylindrical lock construction for durability and longevity in high-use applications (not the less durable tubular design of other indicator locks)
- Privacy function (F76A) with push button lock and for automatic unlock when inside lever is pushed down
- Using a standard bored lock door prep, this indicator lock is ideal for new construction or retrofit applications
- One motion for egress
- Coin turn for emergency access
- Through-bolted for robust operation
- Lever returns to within 1/2″ of door face
- UL Listed for 3 hour fire doors
- ADA compliant lever
- Patent pending
- 2-3/4″ backset latch supplied standard with all YPL02 locksets (see part number 378PL for 2-3/8″ backset)
- The YPL02 installs on 1-3/4″ thick doors standard. It can also be used on 1-3/8″ thick doors by adding adapter plates. See adapter plate kit model number APK-2.
Applications
- Office buildings
- Restaurants
- Schools
- Hospitals
- Warehouses
- Airports
- Places of Worship
- Convenience Stores
- Gas Stations
- Travel Centers
| Brand | |
|---|---|
| Finishes | 613e Dark Oxidized Satin Bronze equivalent, 626 Satin Chrome, BSP Black Suede Powder Coat |
| Lock Function | Privacy with Indicator |
| Lever Design | AU (Augusta), PB (Pacific Beach), TB |
| Construction | Cylindrical lock construction for durability and longevity in high-use applications |
| Usage | Heavy Duty |
| ANSI/BHMA Standard | Certified Grade 1, ANSI/BHMA A156.2, Series 4000 |
| Fire Rating | UL Listed for 3 hour fire doors |
| ADA Compliance | Meets ADA requirements – A117.1 Accessibility Code |
| CA Fire Code | All levers with a return to door of 1/2" or less comply |
| Backset | 2-3/4" |
| Latchbolt | Plain, 2-3/4" backset x 1-1/8" square corner front with 1/2" throw standard |
| Strike | 4-7/8” x 1-1/4” ASA/ANSI strike with curved lip to meet ANSI A115.2 door frame preparation |
| Handing | Completely Reversible |
| Door Applications | Metal or Wood Doors |
| Door Thickness | 1-3/4" |
| Door Prep | ANSI/BHMA A156.115 |
| Warranty | 3 Year |
