7200-630

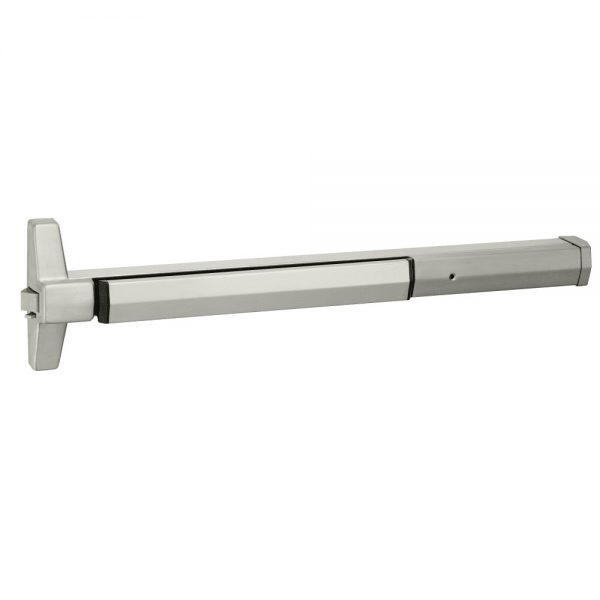

Accentra (Formerly Yale) 7200 Narrow Stile Panic Rim Exit Device

Usually Ships: 20-30 Business Days
  • Heavy Duty, ANSI/BHMA Grade-1 Certified
  • Designed for narrow stile doors
  • Exit only, trim sold separately

Available Options:

Product Overview

Accentra (formerly Yale) 7000 Series Architectural Rim Exit Device, 7200 Narrow Stile

The 7200 is a narrow stile rim exit device compatible with the aesthetics and functional requirements of contemporary doors.

  • Exit Only (Accentra/Yale Exit Device Trim Sold Separately)
  • Designed for narrow stile doors
  • 3/4″ throw deadlocking stainless steel pullman latch
  • Steel chassis and heavy-duty components for superior strength, robustness and lower maintenance
  • Electroplated ferrous components provide corrosion resistance
  • Sleek design with clean lines offers a modern look
  • UL Listed for panic hardware
  • Windstorm certified (refer to local codes)
  • ISO 9001: Designed and manufactured under a certified ISO 9001 quality system
Brand

Finishes

630 Satin Stainless Steel
Length

36" (for 30" to 36" Doors), 48" (for 42" to 48" Doors)
ANSI/BHMA Standard

A156.3, Type 4, Grade 1 Certified
Fire Rating

None
Usage

Heavy Duty
Includes Trim

No
Minimum Stile Width

2"
Dogging Feature

Half turn hex dogging standard
Strike

Standard: 759
Latchbolt

3/4" deadlocking stainless steel pullman-type
Fasteners

Machine screws and wood door fasteners standard for panic hardware. Sex nuts and bolts supplied standard for fire exit hardware
Projections

3-1/4" active, 2-3/4" dogged
Handing

Non Handed – Completely Reversible
Stile Type

Narrow
Door Applications

1-3/4" Metal or Aluminum Doors
Warranty

5-year limited
Buy American Act Compliance

Meets BAA – Buy American Act
