7150-32D
7150-32D

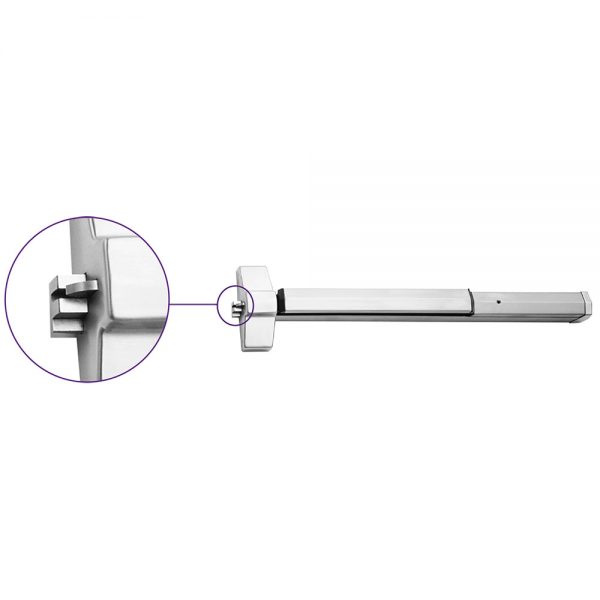

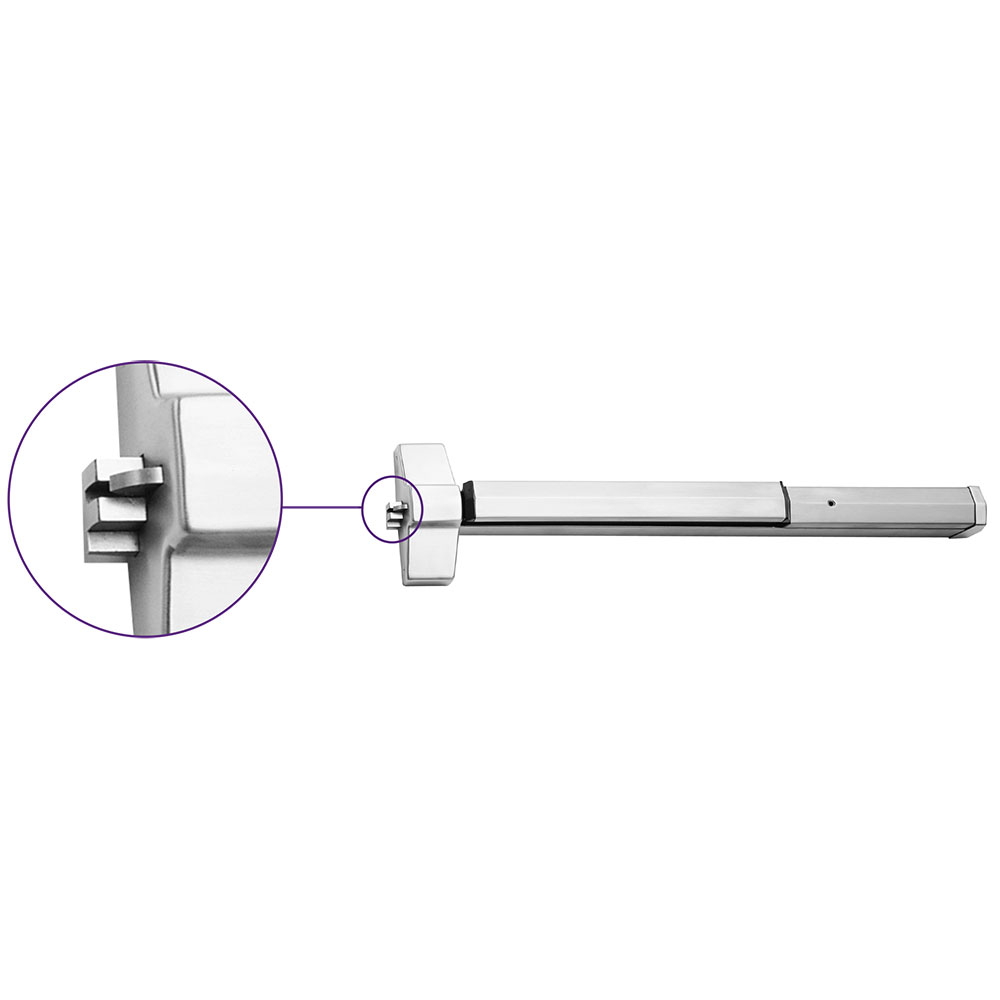

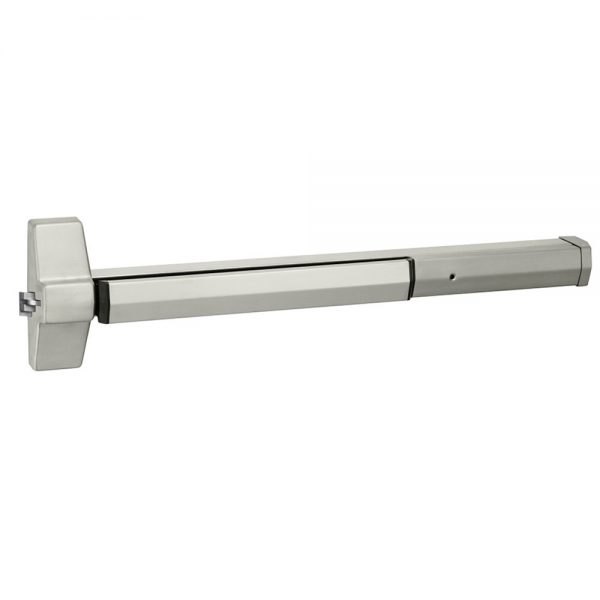

Accentra (Formerly Yale) 7150(F) SquareBolt Rim Exit Device

Usually Ships: 20-30 Business Days
  • Heavy Duty, ANSI/BHMA Grade-1 Certified
  • Includes innovative SquareBolt® latchbolt
  • Exit only (trim sold separately)

Available Options:

Product Overview

Accentra (formerly Yale) 7150(F) SquareBolt Rim Exit Device, Wide Stile Pushpad, Satin Stainless Steel Finish

Just as easy to open as traditional latchbolts, the SquareBolt® exit device’s unique construction offers innovative protection. The SquareBolt’s design presents an improved physical barrier over standard rim latchbolts. The SquareBolt exit device locks into place and stays there. Credit cards, crowbars, door rattling and shaking are resisted, significantly reducing the threat of unauthorized entry.

  • Exit Only (Accentra/Yale Exit Device Trim Sold Separately)
  • SquareBolt security deadbolt designed for maximum holding power
  • Can be retrofitted onto existing 7100 series templated doors
  • Steel chassis and heavy-duty components for superior strength, robustness and lower maintenance
  • Electroplated ferrous components provide corrosion resistance
  • Sleek design with clean lines offers a modern look
  • UL Listed for panic hardware (-F model UL Listed for fire hardware)
  • ISO 9001: Designed and manufactured under a certified ISO 9001 quality system
Brand

Finishes

630 Satin Stainless Steel
Length

36" (for 30" to 36" Doors), 48" (for 42" to 48" Doors)
ANSI/BHMA Standard

Certified ANSI/BHMA A156.3, Grade 1
Usage

Heavy Duty
Fire Rating

7150: Non Fire-Rated – 7150F: 3 Hour Fire-Rated
Includes Trim

No
Minimum Stile Width

4-1/2"
Dogging Feature

Half turn hex dogging standard
Strike

757(F)WS
Latchbolt

1" (25mm) slide projection bolt with full 3/4" (19mm) projection
Fasteners

Machine screws and wood door fasteners standard for panic hardware. Sex nuts and bolts supplied standard for fire exit hardware
Projections

3-1/4" active, 2-3/4" dogged
Handing

Non Handed – Completely Reversible
Stile Type

Wide (Standard)
Door Applications

1-3/4" Metal, wood or composite doors
Warranty

5-year limited
Buy American Act Compliance

Meets BAA – Buy American Act
