7110xAU626Fx630

Accentra (Formerly Yale) 7110(F) x AU626F Surface Vertical Exit Device with Classroom/Storeroom Lever Trim

Usually Ships: 1-2 Business Days
  • Heavy Duty, ANSI/BHMA Grade-1 Certified
  • ANSI Function 08 (classroom) or 09 (storeroom)
  • Includes AU-626F lever trim (cylinder sold separately)

Available Options:

  • Total

Product Overview

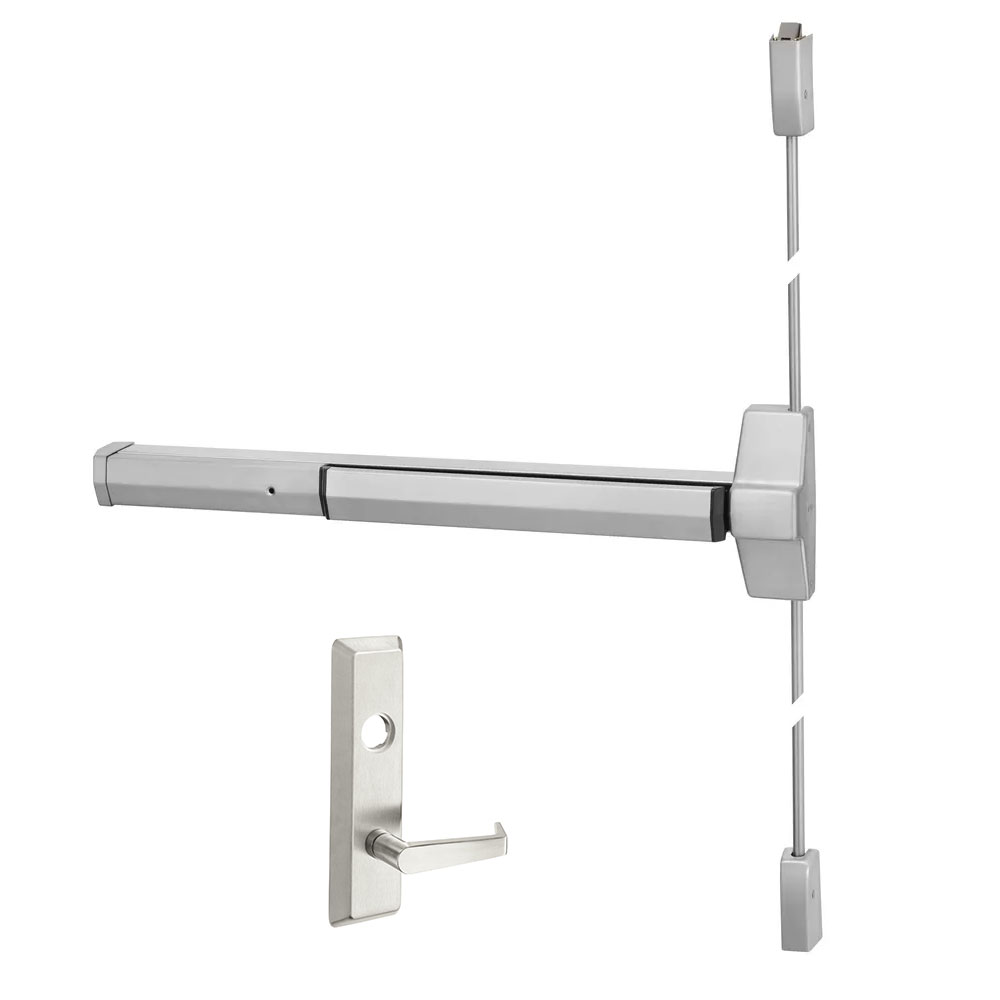

Accentra (formerly Yale) 7110/7110F Surface Vertical Rod Exit Device, AU-626F Classroom/Storeroom Lever Trim

Accentra 7000 Series Exit Devices deliver an unparalleled combination of durability, innovation, and aesthetics. The simple, clean lines and variety of available finishes suit the modern decor of any commercial building. When the beauty of your facility matters almost as much as life safety.

  • ANSI Function 08 (Classroom) or 09 (Storeroom): Ships as 08 Classroom – 09 function achieved with single trim modification at installation
  • Certified ANSI/BHMA A156.3, Grade 1
  • ISO 9001: Designed and manufactured under a certified ISO 9001 quality system

Features

  • Designed for wide stile and flush doors
  • Handed. Specify hand (field reversible)
  • Bottom deadbolt for secure latching
  • Fully adjustable roller strike

AU-626F Lever Trim

  • ANSI Function: 08 or 09 (cylinder controls lever)
  • 08 Function: Entrance by lever. Key locks or unlocks lever.
  • 09 Function: Entrance by lever only when released by key. Key removable only when locked.
  • Requires rim cylinder (sold separately)
  • AU (Agusta) lever design
  • Trim through-bolts to exit device for strength
  • Beveled sides improve attack resistance
  • Solid forged escutcheon and Free-Wheeling trim resists vandalism and abuse
  • Field reversible – ships as RHR
  • Dimensions: 3″ x 10-1/4″ x 13/16″
  • Projection: 2-5/8″
Brand

Finishes

630 Satin Stainless Steel
Includes Trim

Yes
Trim

626F
Lever Design

AU (Augusta)
Cylinder

1-1/8" Rim Cylinder (Sold Separately)
Fire Rating

7110 Non-rated – 7110F Fire-Rated up to 3 Hours
ANSI/BHMA Standard

Certified ANSI/BHMA A156.3, Grade 1
Usage

Heavy Duty
Device Type

Surface Rod Device
Door Width Range

30" to 36"
Door Height

up to 7'0"
Stile Type

Wide (Standard)
Minimum Stile Width

4-1/2"
Projections

3-1/4" active, 2-3/4" dogged
Latchbolt

top: 3/4" pullman style with auto deadlatching; Bottom 5/8" deadbolt, held retracted during door swing
Strikes

Top: Roller type 791. Bottom: Flush mounted 790
Fasteners

Machine screws and wood door fasteners standard for panic hardware. Sex nuts and bolts supplied standard for fire exit hardware
Door Applications

1-3/4" Metal, wood or composite doors
Buy American Act Compliance

Meets BAA – Buy American Act
