Accentra (Formerly Yale)

Accentra (Formerly Yale) 5811 Door Closer with Hold Open Arm

$185.83
Usually Ships:  1-2 Business Days
  • Heavy Duty, ANSI/BHMA Grade 1 Certified
  • Includes Hold Open Arm
  • Regular, Top Jamb or Parallel Arm Mount

Available Options:

Clear

Product Overview

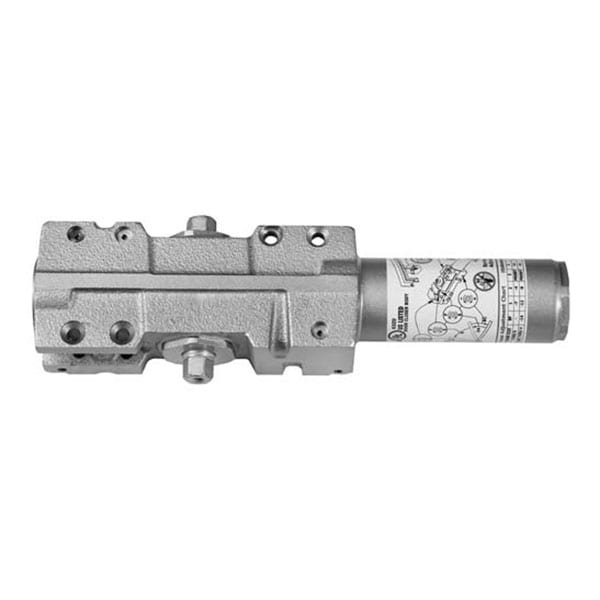

Accentra (formerly Yale) 5811 Door Closer, Size 1-6, Cast Iron Body, Hold Open Arm with PA Bracket, Full Cover

Accentra 5800 Series Cast Iron Door Closers are ideal for retrofit and new construction applications where strength and durability are required at an economical price. The 5800 Series features rugged construction, adjustments for backcheck, closing, and latch speed, and rack and pinion operation.

  • Includes friction type hold open arm
  • Tri-packed: regular, parallel, and top jamb mounting
  • ANSI/BHMA Grade 1 Certified
  • Adjustable spring sizes 1-6
  • Non-handed
  • Cast iron body
Brand

Templating (Hole Pattern)

2-1/4" x 5"

Finishes

BSP Black Suede Powder Coat, 690 Dark Bronze (Powder Coated), 689 Aluminum (Powder Coated)

Mounting Options

Parallel Arm (Push Side), Regular (Pull Side), Top Jamb (Push Side)

Usage

Heavy Duty

ANSI/BHMA Standard

ANSI/BHMA A156.4, Grade 1 certified

Fire-Rating

Non-Rated with Hold Open Arm

Body Construction

Cast Iron Body

Spring Size

Adjustable Spring Size 1-6

Handing

Non-Handed

Cover

Full Cover

ADA Compliance

Meets ADA requirements - A117.1 Accessibility Code

Door Applications

Hollow Metal, Wood or Aluminum

Warranty

10 Years
