Product Overview

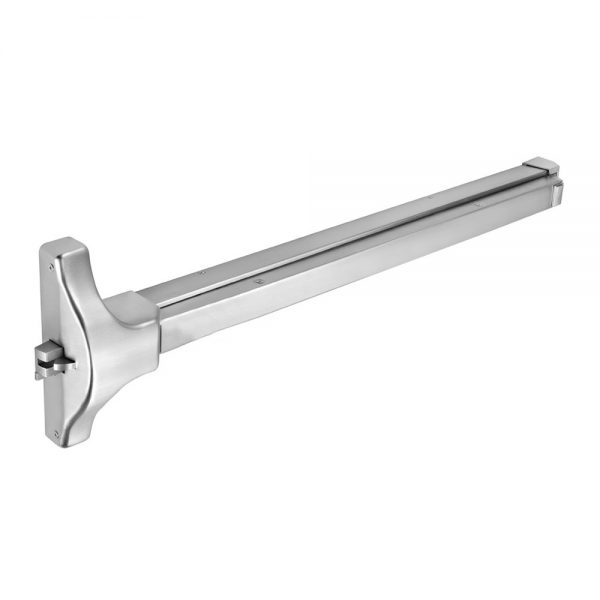

Accentra (formerly Yale) 2150(F) SquareBolt Rim Exit Device, Exit Only
Just as easy to open as traditional latchbolts, the SquareBolt® exit device’s unique construction offers innovative protection. The SquareBolt’s design presents an improved physical barrier over standard rim latchbolts. The SquareBolt exit device locks into place and stays there. Credit cards, crowbars, door rattling and shaking are resisted, significantly reducing the threat of unauthorized entry.
- Exit Only (Accentra/Yale Exit Device Trim Sold Separately)
- SquareBolt security deadbolt designed for maximum holding power
- Designed for wide stile doors
- Non-handed for easy installation
- Steel interlock “E” bracket maintains door-to-mullion relationship in fire-labeled devices
- High-grade steel components offer superior protection against wear & tear
- ANSI/BHMA Grade 1 certified
- UL/cUL listed for panic and fire rated doors
Brand | |
---|---|
Length | 36" (for 30" to 36" Doors), 48" (for 42" to 48" Doors) |
Finishes | 630 Satin Stainless Steel |
ANSI/BHMA Standard | Certified ANSI/BHMA A156.3, Grade 1 |
Usage | Medium Duty |
Fire Rating | 2150: Non-Fire-Rated – 2150F: 3 Hour Fire-Rated |
Stile Type | Wide (Standard) |
Handing | Non Handed – Completely Reversible |
Minimum Stile Width | 4-1/2" |
Projections | 2-1/2" active, 1-3/4" dogged |
Latchbolt | 1" (25mm) slide projection bolt with full 3/4" (19mm) projection |
Strike | 757F, 793 optional (double door application, panic only) |
Dogging Feature | Hex key dogging standard on non-fired-rated devices |
Fasteners | Machine screws and wood door fasteners standard for panic hardware. Sex nuts and bolts supplied standard for fire exit hardware |
Door Applications | 1-3/4" Metal, wood or composite doors |
Warranty | 3 Year |
