2110xAU628F-630

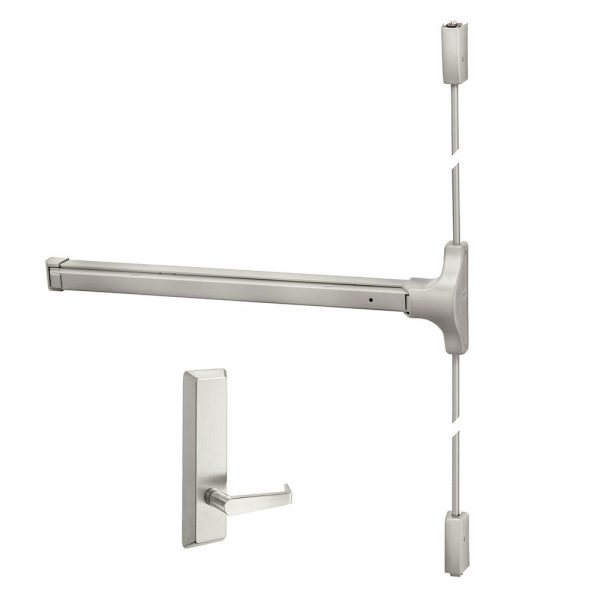

Accentra (Formerly Yale) 2110(F) x AU628F Surface Vertical Exit Device with Passage Lever Trim

Usually Ships: 1-2 Business Days
  • ANSI/BHMA Grade-1 Certified
  • ANSI Function 14 (Passage)
  • Includes AU-628F lever trim

Available Options:

Product Overview

Accentra (formerly Yale) 2110/2110F Surface Vertical Rod Exit Device, AU-628F Passage Lever Trim

The 2110(F) is a surface vertical rod exit device to be used on metal, wood, or composite pairs of doors where two-point latching is desired.

  • ANSI Function 14 (Passage): Entrance by trim when latchbolt is released by lever. Lever always active, no cylinder.
  • Non-handed for easy installation
  • Designed for wide stile doors
  • Positive action linkage on a deadlocking top Pullman bolt
  • Simultaneous direct pull bottom deadbolt
  • When unlatched, device keeps both bolts retracted until door is shut

UL/cUL Listed:

  • FVSR/FVSR7 – Panic hardware
  • GXHX/GXHX7 – Fire exit hardware (F) (up to 4′ x 8′ single, 8′ x 8′ pairs, 3 hr.)

AU-628F Lever Trim

  • ANSI Function: 14
  • AU (Agusta) lever design
  • Trim through-bolts to exit device for strength
  • Field reversible – ships as RHR
  • Dimensions: 3″ x 10-1/4″ x 13/16″
  • Projection: 2-5/8″
Brand

Finishes

689 Aluminum with 630 Satin Stainless Steel Lever, 630 Satin Stainless Steel
Device Type

Surface Rod Device
ANSI/BHMA Standard

Certified ANSI/BHMA A156.3, Grade 1
Usage

Medium Duty
Includes Trim

Yes
Trim

628F
Lever Design

AU (Augusta)
Stile Type

Wide (Standard)
Door Width Range

36" Device: 30" to 36" – 48" Device: 42" to 48"
Door Height

Up to 7'0" Standard (extension top rod for 8'0" doors optional)
Fire Rating

2110: Non-Rated – 2110F: Fire-Rated up to 3 Hours
Handing

Handed – Field Reversible
Minimum Stile Width

4-1/2"
Projections

2-1/2" active, 1-3/4" dogged
Strike

Top: Roller type 791. Bottom: Flush mounted 790
Dogging Feature

Hex key dogging standard on non-fired-rated devices
Fasteners

Machine screws and wood door fasteners standard for panic hardware. Sex nuts and bolts supplied standard for fire exit hardware
Door Applications

1-3/4" Metal, wood or composite doors
Warranty

3 Year
