Product Overview

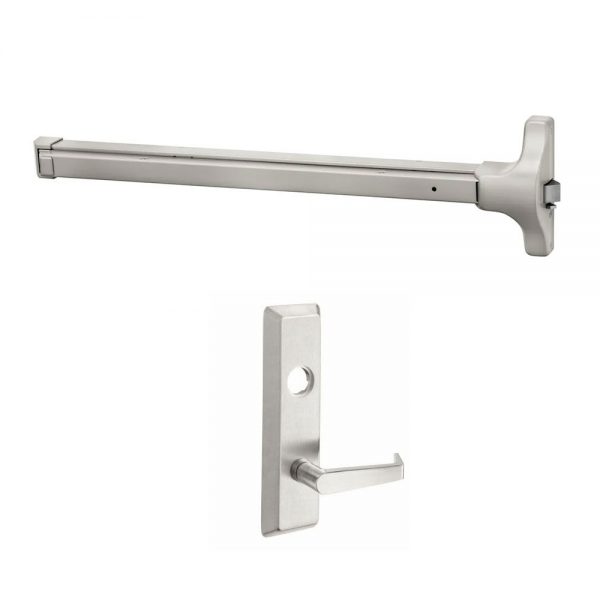

Accentra (formerly Yale) 2100/2100F Economy Rim Exit Device, AU-626F Classroom Lever Trim
Providing a higher standard of ANSI/BHMA Grade 1 performance, the 2100 Series Exit Device is the right choice for meeting the rigors of everyday use. The 2100 Series is a perfect fit for both back of house and prominent openings in office buildings, retail, and a long list of other facilities that require both performance and style.
- ANSI Function 08 (Classroom) or 09 (Storeroom): Ships as 08 Classroom – 09 function achieved with single trim modification at installation
- Tough: Sturdy construction is ideal for meeting the rigors of demanding industry environments
- Economical: Works for many building projects, regardless of budget
- Strong & Durable: ANSI/BHMA Grade 1 Certification ensures long life and reliability
AU-626F Lever Trim
- ANSI Function: 08 or 09 (cylinder controls lever)
- 08 Function: Entrance by lever. Key locks or unlocks lever.
- 09 Function: Entrance by lever only when released by key. Key removable only when locked.
- Requires rim cylinder (sold separately)
- AU (Agusta) lever design
- Trim through-bolts to exit device for strength
- Beveled sides improve attack resistance
- Solid forged escutcheon and Free-Wheeling trim resists vandalism and abuse
- Field reversible – ships as RHR
- Dimensions: 3″ x 10-1/4″ x 13/16″
- Projection: 2-5/8″
Brand | |
---|---|
Finishes | 630 Stainless Steel Device w/ 626 Satin Chrome Lever |
Length | 36" (for 30" to 36" Doors), 48" (for 42" to 48" Doors) |
Includes Trim | Yes |
Lever Design | AU (Augusta) |
ANSI/BHMA Standard | Certified ANSI/BHMA A156.3, Grade 1 |
Usage | Medium Duty |
Stile Type | Wide (Standard) |
Fire Rating | 2100: Non-Rated – 2100F: 3 Hour Fire-Rated |
Handing | Non Handed – Completely Reversible |
Minimum Stile Width | 4-1/2" |
Projections | 2-1/2" active, 1-3/4" dogged |
Latchbolt | 3/4" deadlocking stainless steel pullman-type |
Strike | 757F, 793 optional (double door application, panic only) |
Dogging Feature | Hex key dogging standard on non-fired-rated devices |
Fasteners | Machine screws and wood door fasteners standard for panic hardware. Sex nuts and bolts supplied standard for fire exit hardware |
Door Applications | 1-3/4" Metal, wood or composite doors |
Warranty | 3 Year |
