Accentra (Formerly Yale)

Accentra (Formerly Yale) 5301LN AU Passage Lever Set

$191.84
Usually Ships:  1-2 Business Days
  • ANSI/BHMA Certified Grade 2
  • ADA compliant, 3-hour fire-rated
  • Both levers always unlocked

Available Options:

Clear

Product Overview

Accentra (formerly Yale) AU5301LN ANSI/BHMA Grade 2 Certified Cylindrical Lock, Passage Function, Augusta Lever

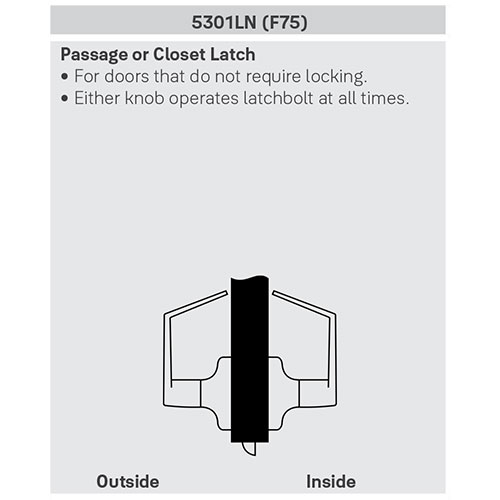

ANSI Function F75 - Keyless - For doors that do not require locking. Latch bolt by levers at all times.

  • Designed to withstand everyday use and resist damage and vandalism
  • Adjustable door thickness mechanism
  • Heavy duty torsion spring prevents lever sag
  • Thrubolts solidly through the door, providing greater strength and stability
  • ANSI/BHMA Grade 2 certified for long life and durability
  • ADA compliant for ease of accessibility

codes

Brand

Finishes

626 Satin Chrome

Lock Function

Passage

Usage

Medium Duty

ANSI/BHMA Standard

Certified ANSI/BHMA A156.2, Series 4000 Grade 2

Latch

1/2" throw - 1-1/8" x 2-1/4" face

Backset

2-3/4"

Strike

4-7/8” x 1-1/4” ASA/ANSI strike with curved lip to meet ANSI A115.2 door frame preparation

Handing

Non-Handed

Lever Design

AU (Augusta)

Door Thickness

1-3/8" to 1-3/4"

Fire-Rating

UL-cUL fire rated up to 3 hours

ADA Compliance

Meets ADA requirements - A117.1 Accessibility Code

Warranty

5 Year
