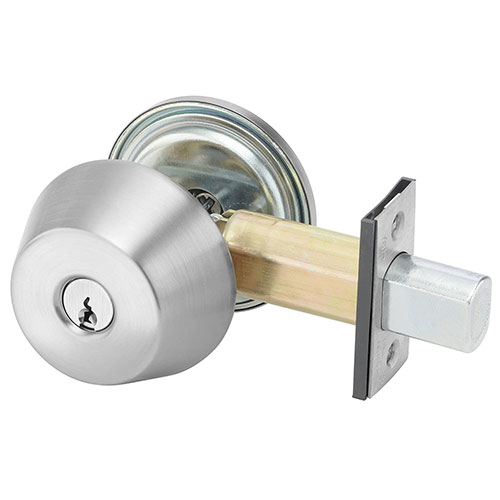

Yale D112 Single Cylinder Deadbolt

Usually Ships: 1-2 Business Days
  • Heavy Duty – ANSI Grade 1
  • Single Cylinder x Inside Turn
  • 1″ throw solid steel deadbolt

Available Options:


Yale D112 Single Cylinder Deadbolt, Grade 1, 2-3/4″ Backset

Yale® D Series deadbolts are the ideal choice for a wide variety of commercial applications where consistent quality, ease of use and installation are required.

  • Cylinder x Thumbturn: Deadbolt operated by key outside, thumbturn inside

Fire Listings: D series deadbolts, when used in conjunction with the primary latching device, are uL – cuL listed for use with Classified steel covered composite or hollow metal doors rated up to and including 3 hours; wood and plastic covered composite doors rated up to and including 1-1/2 hours; and wood core doors rated for 20 minutes. note: Any retrofit or other field modification to a fire rated opening can potentially impact the fire rating of the opening, and Yale Locks & Hardware makes no representations or warranties concerning what such impact may be in any specific situation. When retrofitting any portion of an existing fire rated opening, or specifying and installing a new fire-rated opening, please consult with a code specialist or local code official (Authority Having Jurisdiction) to ensure compliance with all applicable codes and ratings.


Deadbolt Type

Single Cylinder


Schlage C Keyway, Yale E1R (Para) Keyway


613e Dark Oxidized Satin Bronze equivalent, 626 Satin Chrome, BSP Black Suede Powder Coat


Heavy Duty

ANSI Grade

Certified ANSI/BHMA A156.5 Grade 1




1-1/8” x 2-3/4“ square corner

Door Thickness

1-3/8" to 1-3/4"


1" throw bolt, 1-1/8" x 2-1/4" square corner face plate
