Schlage L9080P Storeroom Mortise Lock w/ 06A Lever Trim

Usually Ships: 20-30 Days
  • Extra Heavy-Duty Grade-1
  • ANSI Function: F07 – Storeroom
  • ADA Compliant – Fire-Rated

Available Options:

  • Black
  • Bright Brass
  • Bright Chrome
  • Dark Bronze
  • Satin Brass
  • Satin Bronze
  • Satin Chrome
  • Satin Chrome AM (Antimicrobial)
  • Stainless Steel
Clear

Nothing is tougher. The L Series is built to withstand the rigors of daily use without fail and is among the most durable, dependable and intelligent family of products on the market today. When you choose a Schlage lock you can have confidence you’ve chosen a solution that will provide protection at the most critical moments.

L Series locks are ideal for use in schools, hospitals and factories, where the finest hardware must also deliver consistent, dependable operation and stand up to constant use and abuse.

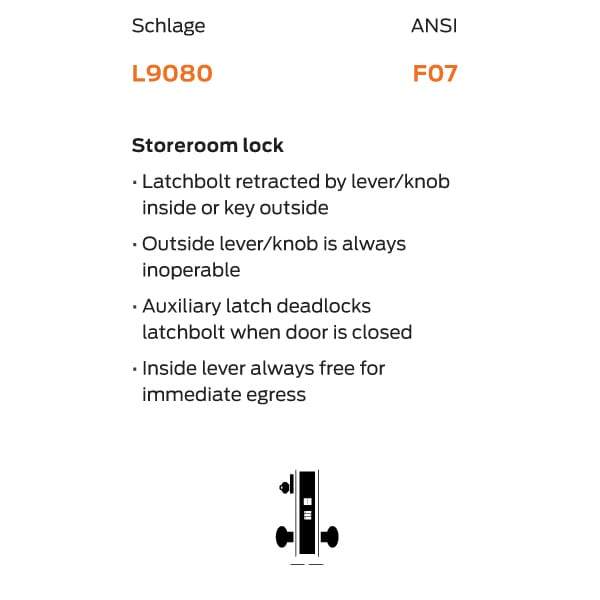

ANSI F07 – Storeroom – Latchbolt retracted by key outside or by lever inside. Outside lever is always inoperative. Auxiliary latch deadlocks latchbolt when door is closed. Inside lever is always free for immediate egress.

Brand

Finishes

605 Bright Brass, 606 Satin Brass, 612 Satin Bronze, 613 Oil Rubbed Bronze, 622 Matte Black, 625 Bright Chrome, 626 Satin Chrome, 626AM Satin Chrome Antimicrobial, 630 Stainless Steel

Lock Function

Storeroom

ANSI Function

F07

Cylinder & Keys

30-001 cylinder keyed different, with 2 keys

Keyway

Schlage C Keyway

Usage

Heavy Duty

ANSI Grade

ANSI A156.13, Series 1000, Operational Grade 1 and Security Grade 1

Fire Rating

“A” Label 3 Hour Fire Doors, UL10C Positive Pressure Rated

ADA Compliance

Meets ADA requirements – A117.1 Accessibility Code

Latchbolt

3⁄4" throw stainless steel latch with anti-friction tongue

Backset

2-3/4"

Strike

ANSI curved lip strike 1-1/4" x 4-7/8" x 13/16" lip to center with dust box standard

Case

Steel case and parts are corrosion resistant

Case Size

4-7⁄16" x 6-1⁄16" x 1"

Armored Front

1-1/4" x 8" x 7/32" standard

Handing

Field-reversible handing without opening lock case

Door Thickness

1-3/4"

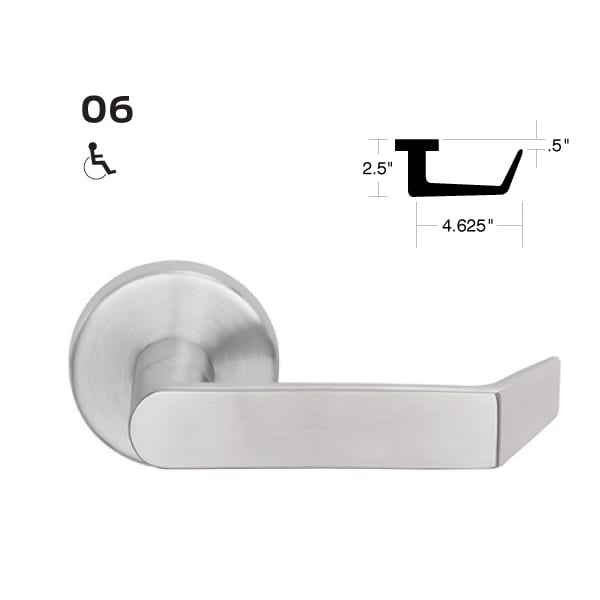

Lever Design

06A
